- Connector Types: Full AXS®, LC, LC-Uniboot, SC with UPC or APC polish
- Fiber Types: Singlemode (OS2), Multimode (OM1–OM5)
- Cable Type: Armored, Indoor/Outdoor (I/O), and OSP
- Jacket Sizes: 4.8mm – 7mm

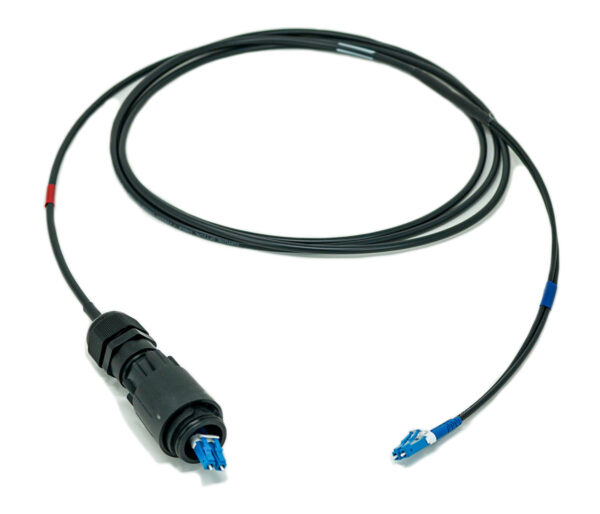

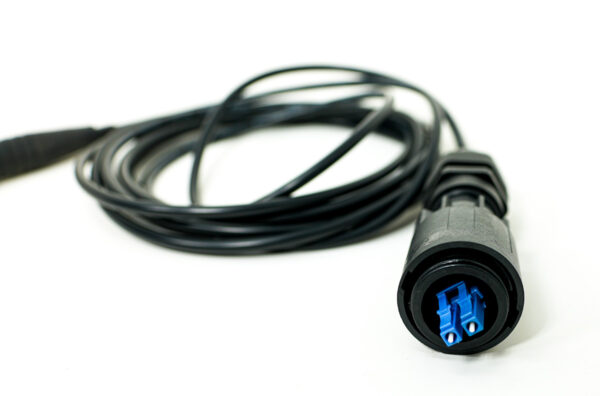

Full AXS® Fiber Assemblies
Product Overview
NetSource’s Full AXS® Fiber Assemblies are designed for direct outdoor fiber connections in wireless networks, offering a compact, rugged solution for high-performance optical links. Featuring a 1 or 2-fiber LC interface, these assemblies support both singlemode and multimode applications and are built to withstand demanding environmental conditions. The unique Full AXS® design allows for transceiver installation or removal through the bulkhead—eliminating the need to open the remote radio head (RRH), significantly reducing service time and risk. With a one-hand bayonet-style mating and sealed, IP-rated housing, these assemblies are ideal for fiber to the antenna (FTTA), 5G, and other outdoor telecom deployments. Compatible with armored, indoor/outdoor, and tactical cable types, they offer flexibility without sacrificing durability.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- UV and Corrosion Resistance: Materials withstand outdoor exposure and harsh climates
- Mating Durability: 100 cycles
- Ingress Protection: IP68 rated for water and dust resistance
- Standard Compliance: RoHS and REACH
- Flame Rating: UL 94-VO
- Pull Force: 150 N
- Salt Mist: IEC 61300-2-26
- Vibration: IEC 61300-2-9
- Shock: IEC 61300-2-9
- Compact, rugged form factor optimized for FTTA, 5G small cell, and macro cell applications
- Weatherproof and corrosion-resistant design protects fiber integrity in harsh outdoor conditions
- Provides long-term durability and performance in wireless infrastructure applications
