- Connector Types: ODC® plug in socket, LC, LC-Uniboot, SC with UPC or APC polish
- Fiber Type: Singlemode (OS2), Multimode (OM1–OM5)
- Ferrule Type: 1.25mm zirconia ceramic ferrule
- Cable Type: Armored, Indoor/Outdoor (I/O), and OSP
- Jacket Sizes: 5mm – 6mm

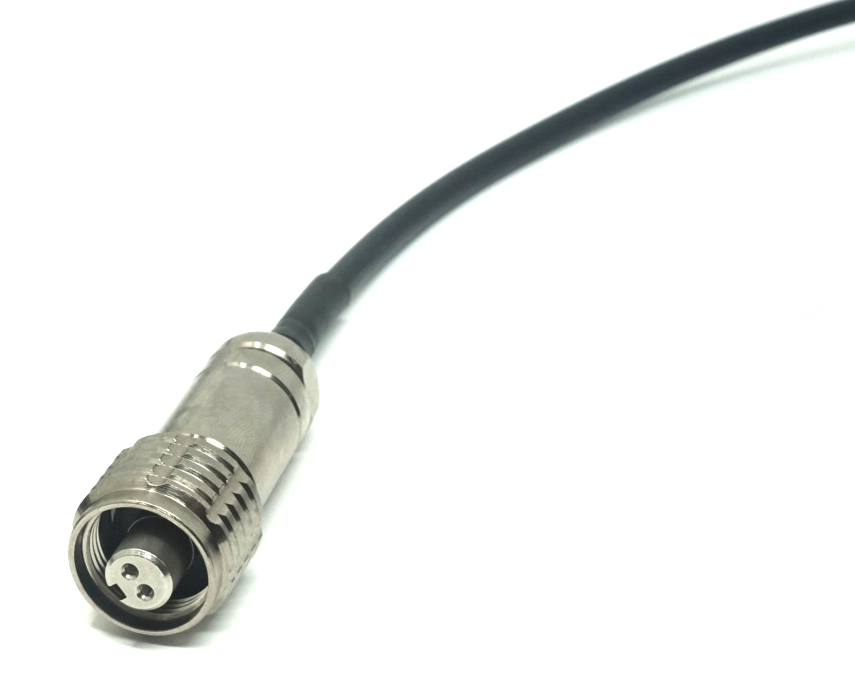

ODC® Fiber Assemblies
Product Overview
NetSource’s ODC® Fiber Assemblies are compact, high-performance connectivity solutions designed for outdoor and industrial fiber applications where ruggedization and reliability are critical. Featuring 2- or 4-fiber plug-and-socket configurations, these assemblies support both singlemode and multimode fiber types and use 1.25mm ceramic ferrules for precise optical alignment. The robust housing offers protection against water, dust, and corrosion, while a one-hand threaded coupling ensures a secure and repeatable connection in the field. Designed for quick deployment and long-term durability, ODC® assemblies are ideal for remote radio heads, outdoor DAS, security systems, and other environments where harsh conditions are a factor.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Mating Durability: >500 cycles
- UV Resistance: Housing materials designed for prolonged outdoor exposure
- Corrosion Resistance: Salt-mist and chemical resistant construction
- Crush and Impact Resistance: High strength when used with armored or tactical cable options
- Ingress Protection: IP68 rated for dust and water
- Standard Compliance: RoHS and REACH
- Salt Mist: IEC 61300-2-26
- Vibration: IEC 61300-2-9
- Shock: IEC 61300-2-9
- Fully sealed design resists water, dust, and corrosion for reliable outdoor performance
- High-precision 1.25mm ceramic ferrules ensure low insertion loss
- Supports both singlemode and multimode fiber transmission
- Waterproof dust caps protect connectors when unmated
