OptiTap® Cables


OptiTap

OptiTap®

OptiTap to Pigtail

OptiTap® Pigtail

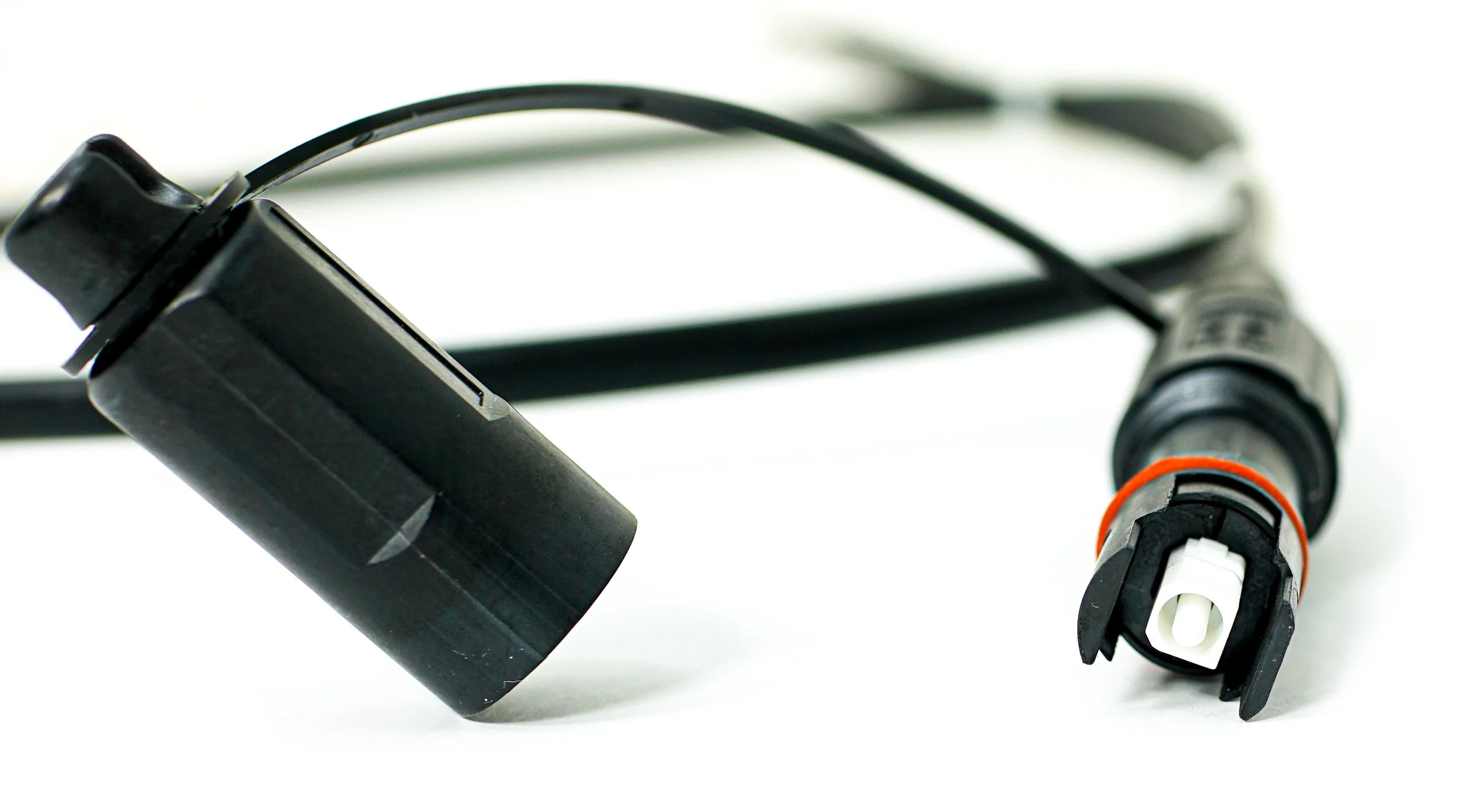

OptiTap® compatible outdoor rated fiber optic cables for FTTx applications

NetSource OptiTap® cable assembly solutions provide the speed and flexibility your network requires in any environment. The ease of our plug and play, pre-terminated cable assemblies saves time and money in the field. With a variety of cable and connector options NetSource OptiTap® cable assemblies can address all of your outside plant network needs.

Our OptiTap® solutions are intended for challenging environments, perform under diverse conditions, extreme temperatures, in areas of high moisture or excessive dryness, and heavy RF interference.

OptiTap® Blunt End

Features:

  • Fiber: 1-2 fibers

  • Connectors: OptiTap®, Inline, SC/APC, LC, SC, ST, and Blunt end for splicing

  • Cable: Flat drop (Toneable or Dielectric), 250um or 900um, indoor and outdoor round

  • Breakout: Custom

  • Singlemode

  • IP68 rated for water and dust ingress protection

  • Flat Drop is self-supported at 40lbs of installation tension, 150ft

  • Operating Temperature: -40°F to 185°F

  • RoHS and REACH materials compliant

Insertion Loss

  • Multimode: .15dB typical, .20dB max

  • Singlemode: .20dB typical, .30dB max

  • Min RL: -65dB(APC), -57dB(UPC)
