- Splitter Configurations: 1×2, 1×4, 1×8, 1×16, and 1×32
- Operating Wavelength: 1260–1650 nm
- Splitter Type: Planar Lightwave Circuit (PLC)
- Termination: Bare fiber for direct splicing
- Fiber Type: Single-mode G.657A2
- Input/Output: 250µm or 900µm
- Standard Fiber Length: 1.5 m (optional custom lengths available)
- ROHS/REACH compliant

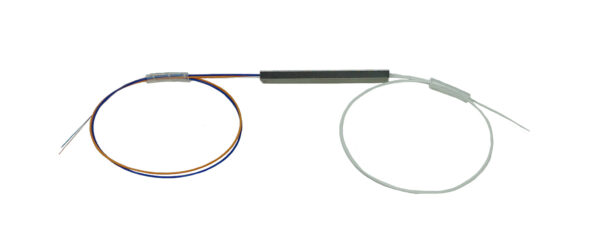

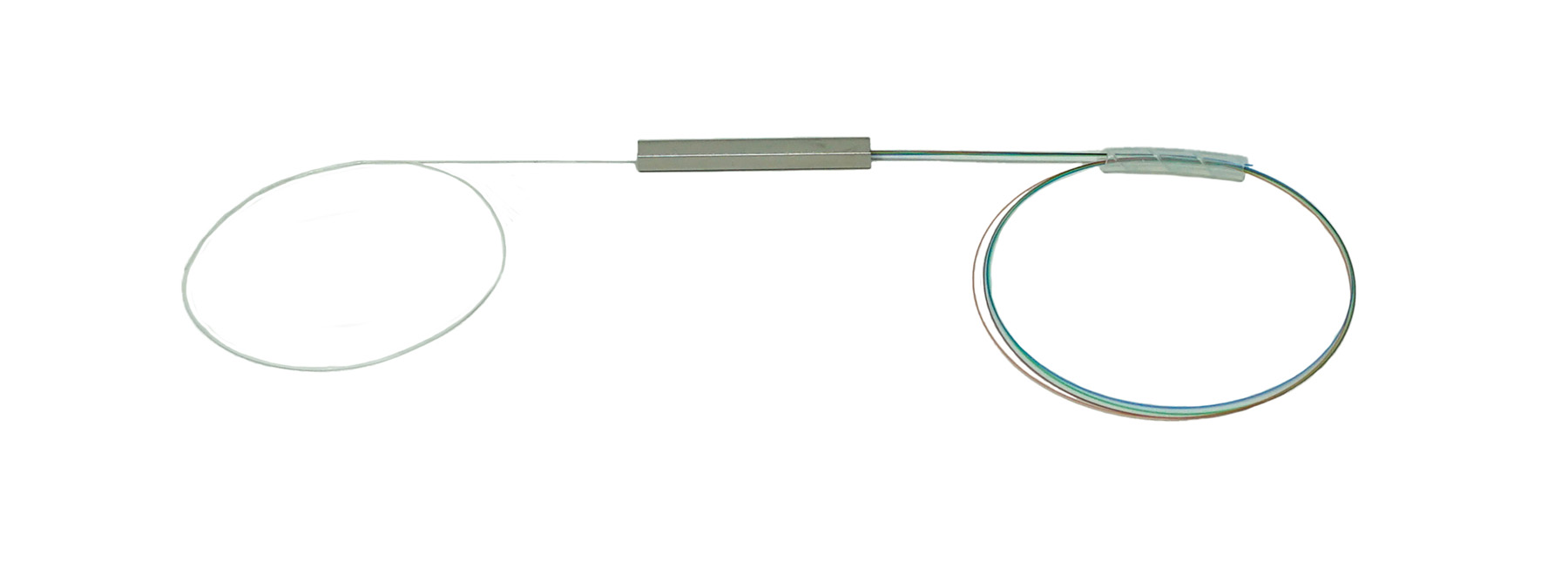

Bare PLC Splitters
Product Overview
NetSource’s Premium Bare PLC Splitters are used for fiber distribution in splice trays for outside plant (OSP) and central office applications. These splitters have splice-only inputs and outputs and are available in 250µm or 900µm formats for flexible routing. They support fiber-to-the-home (FTTH) and other access network builds and meet GR-1209 and GR-1221 optical performance requirements.
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Fiber Protection: Shipped with protective tubing to prevent damage during handling and installation
- Compact Form Factor – Maximizes space in splice trays and enclosures
- Bare-Fiber Design – Enables direct fusion splicing for streamlined installation
- Low Insertion Loss – Minimizes optical power loss for reliable network performance
- High Uniformity – Provides consistent optical performance across all output ports
- High Reliability – Designed to meet GR-1209 and GR-1221 performance requirements
- Broad Application Support – Ideal for FTTH, OSP, central office, and fiber distribution networks
Part Number Chart
| PLC-SP | – | Input Fibers | – | Output Fibers | – | Input Type | Output Type | – | Input Breakout Length | Output Breakout Length |
| 1 | 2 | X: Bare (250um) | X: Bare (250um) | 15: 1.5m (5ft) | 15: 1.5m (5ft) | |||||
| 4 | Y: Bare (900um) | Y: Bare (900um) | ||||||||
| 8 | ||||||||||
| 16 | ||||||||||
| 32 |
Notes : add R for reverse Pull (Pull from the Terminal end) Lengths over 950ft on a reel
Insertion Loss
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
| Working Wavelength | 1260-1650 | ||||
| Fiber Type | G657A1 or Customized | ||||
| Insertion Loss (dB) | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 |
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.8 | ≤1.0 | ≤1.5 |
| Polarization Dependent Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 |
| Return Loss (dB) | ≥55 | ||||
| Directionality (dB) | ≥55 | ||||
| Fiber Length (dB) | 1.0 or Customized | ||||
| Temperature Stability | -40°C to 85°C (≤0.5) | ||||
| Working Temperature | -40°C to 85°C | ||||
| Storage Temperature | -40° to 85°C | ||||
