- Category: CAT5E, CAT6, CAT6A (Shielded or Unshielded)
- Conductor: 24 AWG or 26 AWG
- Jacket Material: Riser, Plenum, and LSZH (Low Smoke Zero Halogen)
- Boot Type: Unbooted, slide-on-boots, or clear slimline boots
- Connector Type: RJ45 plugs
- Length Options: Custom lengths available
- Color Options: Multiple jacket colors available

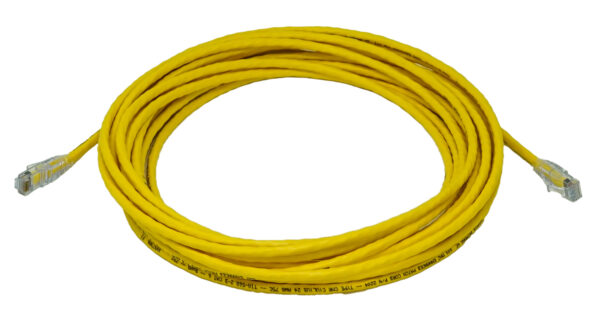

Copper Patch Cords
Product Overview
NetSource offers a comprehensive selection of high-performance copper patch cords designed to support fast, reliable connections in voice, data, and video networks. Our patch cords are available in a variety of lengths, colors, and configurations to meet the demands of structured cabling systems across enterprise, data center, and telecom environments.
To support a wide range of installation needs, NetSource provides two lines: our standard U.S.-manufactured patch cords, built with premium materials and tested for quality assurance, and an Economy series for cost-sensitive projects that still require dependable performance.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +70°C
- Flame Rating: CM standard; other ratings (CMR, CMP) available on request
- Bend Radius: Minimum 4x cable outer diameter
- Plug Durability: Rated for 750+ mating cycles
- Standards Compliance: RoHS, REACH, ANSI/TIA-568.2-D, and ISO/IEC
- Ideal for connecting end devices in data centers, patch panels, switches, and telecom rooms
- Wide selection of colors and boot styles
- Gold-plated contacts for improved conductivity and corrosion resistance
- Snagless and molded boots reduce wear and cable damage during installation
- Custom labeling and lengths available upon request
- Compatible with NetSource trunks, patch panels, and workstation jacks
Part Number Chart
| Patch Cord Type | Boot Option | Category | Fixed Note | Additional Options | – | Color* | – | Length | |
| PC: U.S. Made | C: Clear Slimline Boot (only available with U.S. made) | 5E: CAT5E | MP: Mini-Patch | AQ: Aqua | OR: Orange | XXXFT | |||
| IM: Economy Series | S: Bubble Boot | 6: CAT6 | SH: Shielded | BK: Black | PK: Pink | XXXM | |||
| Blank: No Boot | 6A: CAT6A | Blank: Standard | BL: Blue | PR: Purple | |||||
| BN: Brown | RD: Red | ||||||||
| GN: Green | WH: White | ||||||||
| GY: Gray | YL: Yellow | ||||||||
| LG: Lime Green | |||||||||
*Not all colors are available in Economy Series
