Corning Gold Fiber Patch Cords

Product Overview

NetSource’s participation in the Corning® CAH Connections Gold Program allows us to offer fiber patch cords that are fully covered under Corning’s 25-Year Extended Warranty. These premium assemblies use Corning fiber and connectors and are manufactured to exacting standards that ensure long-term reliability in demanding environments. Each cable is factory-terminated, serialized, and 100% tested. We offer customization on length, labeling, and packaging to meet specific project needs—with fast turnaround and dependable delivery.

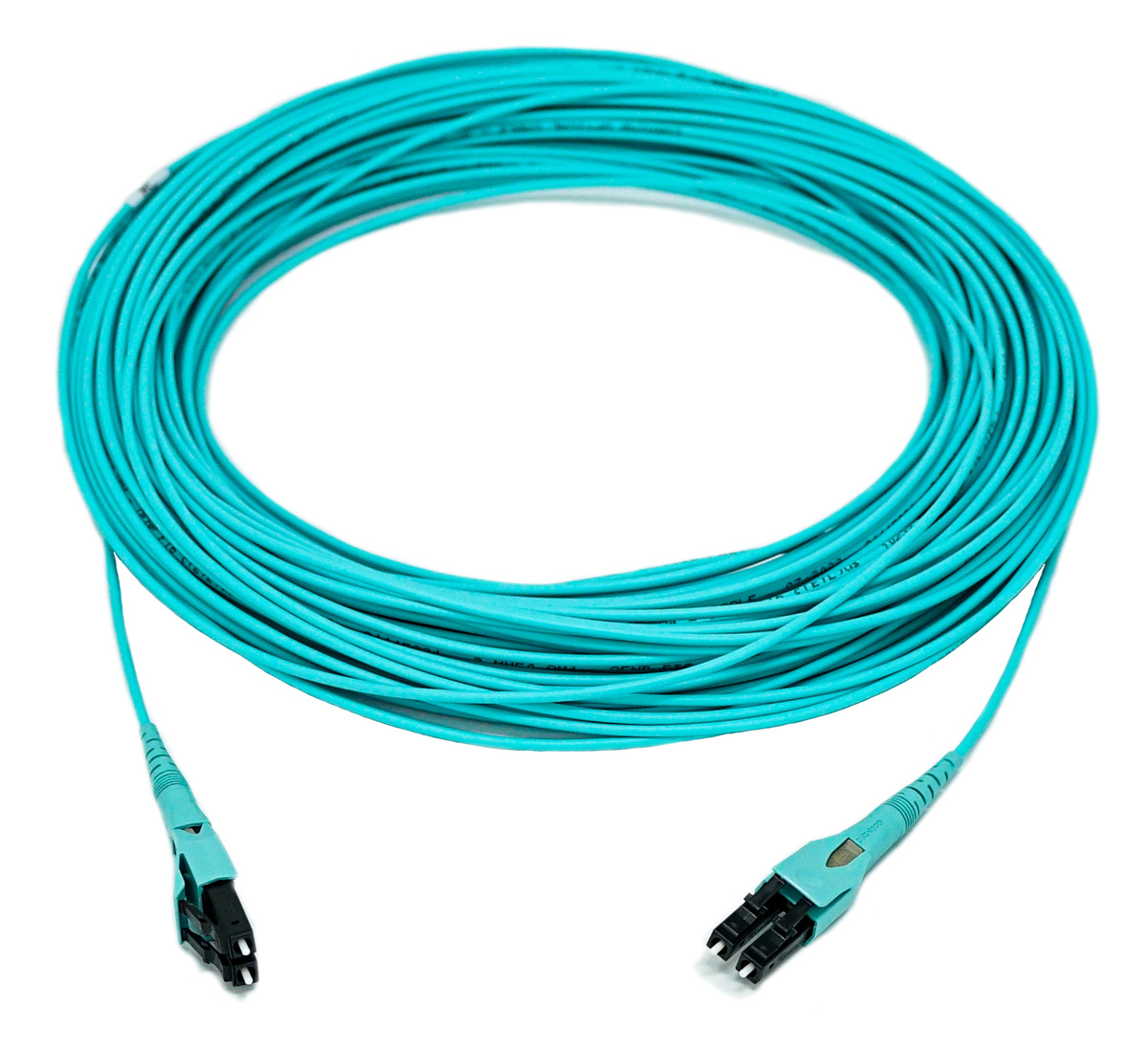

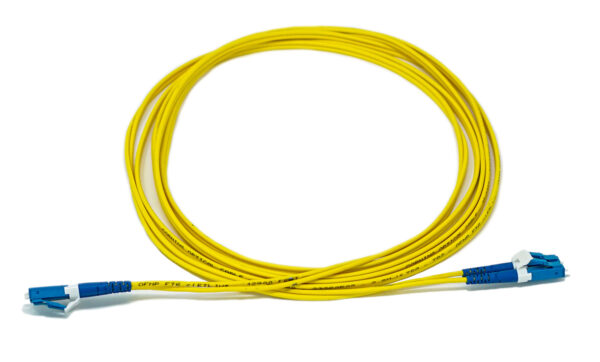

Connector Types: LC, LC-Uniboot, SC, ST, FC with UPC or APC polish
Fiber Types: Singlemode (OS2), Multimode (OM1–OM5)
Cable Type: Indoor Duplex Zipcord or Simplex
Jacket Options: Riser (OFNR), Plenum (OFNP), LSZH
Jacket Sizes: 1.6mm, 2.0mm, 3.0mm

Optical Performance:
1. FOTP-171 (TIA/EIA-455-171) – Insertion Loss
2. FOTP-107 (TIA/EIA-455-107) – Return Loss
Endface Geometry & Inspection:
1. IEC 61300-3-35 – Visual Inspection
2. IEC 61755-3-1 – Endface Geometry — Single-Fiber
3. IEC 61755-3-32 – Endface Geometry — MT Ferrules (Multifiber)
Environmental/Mechanical (Connectors & Assemblies):
1. GR-326 – Single-Fiber Connector Performance, Durability & Mechanical Requirements
2. GR-1435 – Multifiber Connector Performance, Durability & Mechanical Requirements
Indoor Cable Requirements:
1. UL 1666 / NFPA 262 – Indoor Fiber Cable Flame & Smoke Requirements (Riser & Plenum)
Environmental Compliance:
1. RoHS/REACH – Environmental Compliance

Part Number Chart

Options Type	Glass Type	Cable Type	–	Connector Type Side 1 & 2		–	Length
G-Fa: Corning® Gold	XG: OM3 50um	No letter equals Riser		FA: FC/APC	FA: FC/APC		XXXFT
	4G: OM4 50um	P: Plenum		FC: FC	FC: FC		XXXM
	5G: OM5 50um	LSZH: Low Smoke Zero Halogen		LA: LC/APC	LA: LC/APC
	SM: Single Mode			LC: LC	LC: LC
	62: OM1 62.5			LU: LC Uniboot	LU: LC Uniboot
				SA: SC/APC	SA: SC/APC
				SC: SC	SC: SC
				ST: ST	ST: ST
