- Connector Types: LC, SC, ST, FC with a UPC or APC polish
- Fiber Type: Single-mode (G.657.A1 or B3 bend-insensitive), OM1, OM3, OM4
- Jacket Sizes: 900µm, 2.0mm, 3.0mm, and Ribbon
- Jacket Rating: Indoor Plenum or Riser
- Testing: 100% optically tested for insertion loss and return loss
Fiber Pigtails
Product Overview

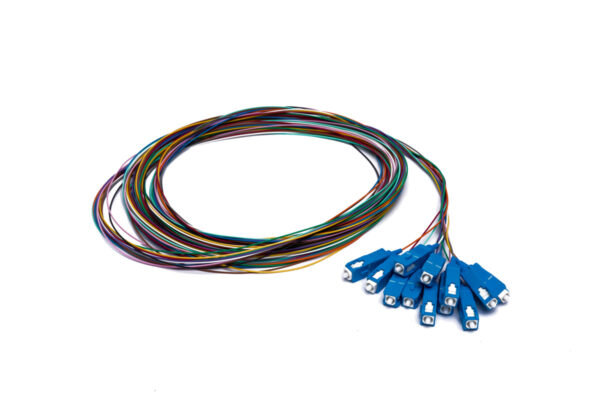

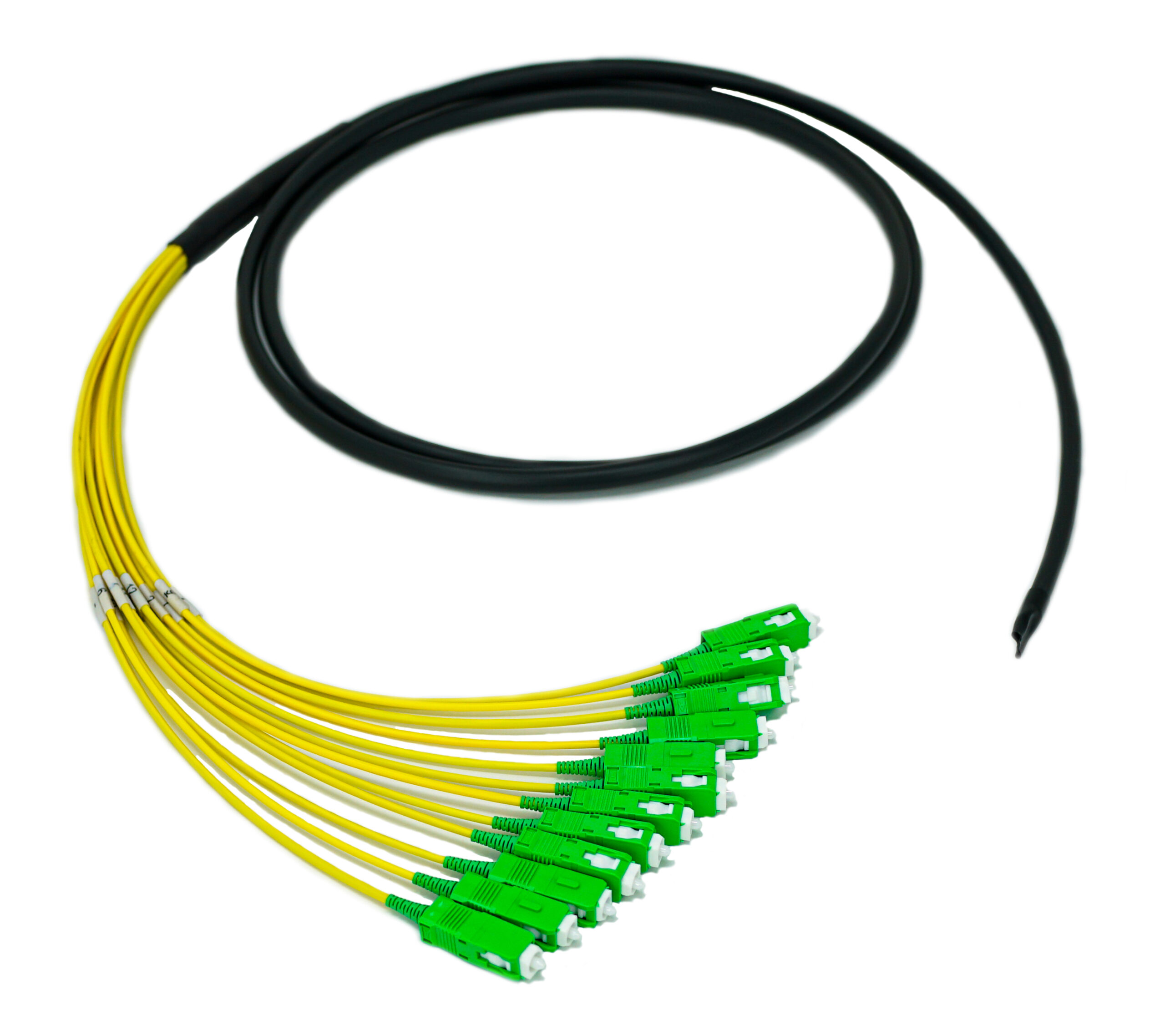

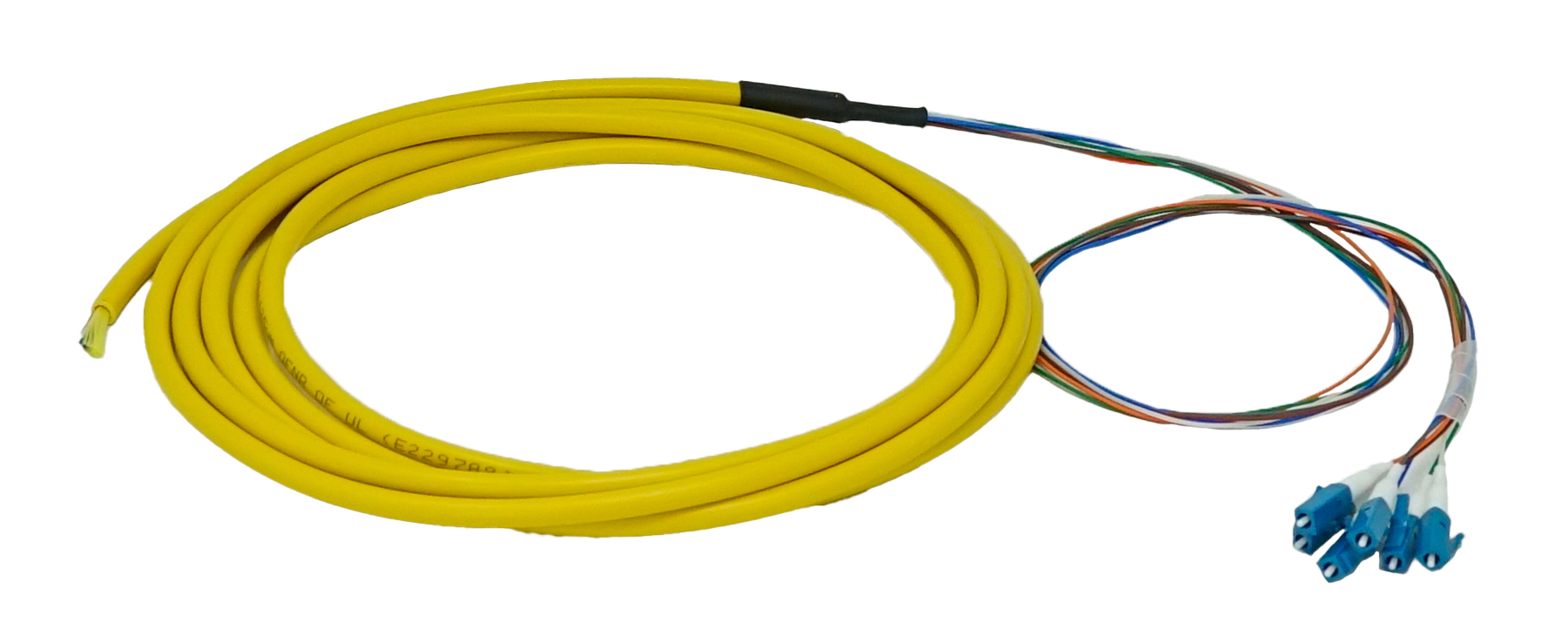

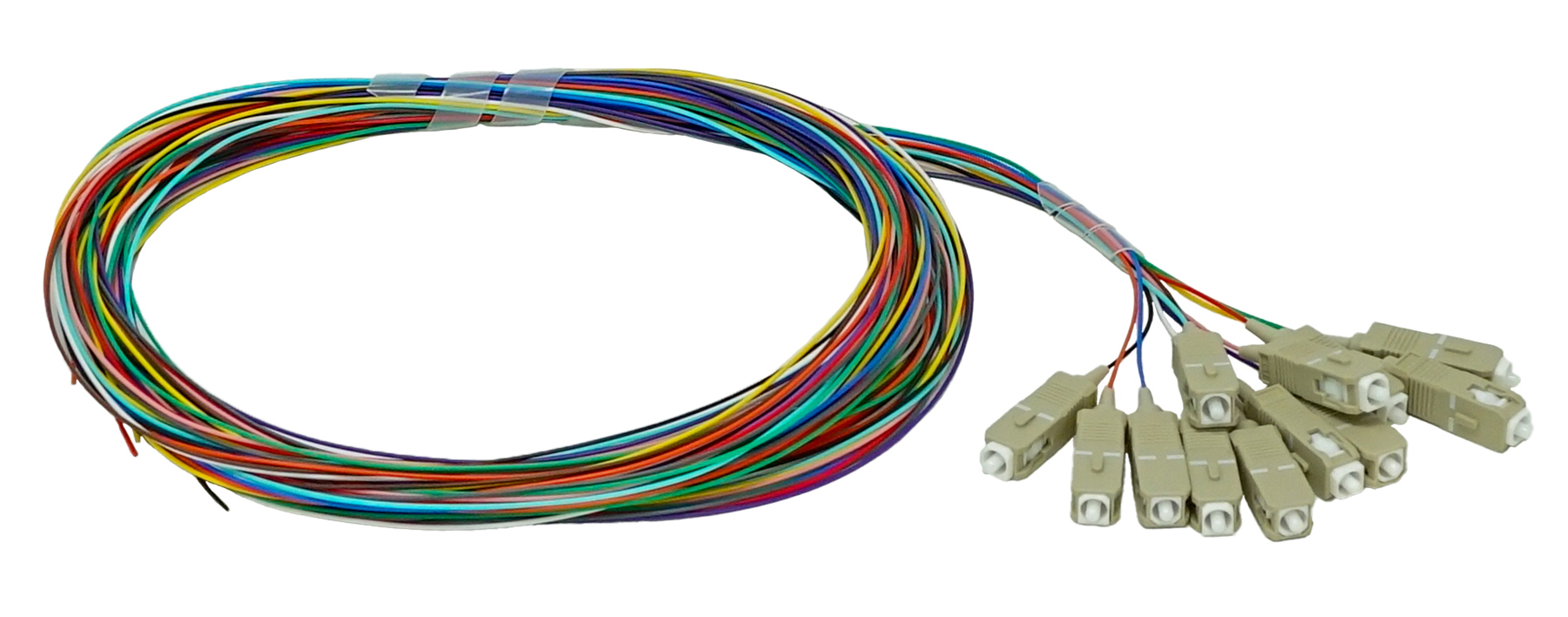

NetSource’s Fiber Pigtails provide a high-performance, factory-terminated solution for splicing and terminating fibers in network access points, splice trays, and patch enclosures. Available in 900µm tight-buffered, 2mm, 3mm, and Ribbon jacketed constructions, these pigtails are pre-polished with LC, SC, ST, or FC connectors in either UPC or APC configurations.
Each pigtail is color-coded per TIA/EIA-598 and can be ordered individually or kitted in sets of 12 or 24 fibers to streamline installation. Ideal for central office, Fiber-To-The-x (FTTx), enterprise, and data center deployments, NetSource pigtails simplify fusion splicing and ensure consistent, low-loss connections for mission-critical fiber networks.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Durability: ≥ 500 mating cycles
- Jacket Options: UV- and moisture-resistant materials available (outdoor-rated)
- Endface Testing: IEC 61300-3-35 compliant
- Color Coding: TIA/EIA-598 (12 standard fiber colors)
- Standards Compliance: RoHS, REACH, and GR-326
- Factory-polished for consistent, low-loss splicing
- All 12 standard fiber colors included for quick identification
- Optional kits of 12 or 24 pigtails for simplified field deployment
- BABA-compliant builds available for federally funded projects
Part Number Chart
| FP | Strand Count | 900 | Glass Type | Cable Type | – | Connector | – | Length |
| 1 | XG: OM3 50µm | No Letter: Riser rated jacket | FA: FC/APC | XXXFT | ||||
| 2 | 4G: OM4 50µm | P: Plenum Round Micro Distribution | FC: FC/UPC | XXXM | ||||
| 6 | 5G: OM5 50µm | R: Riser Round Micro Distribution | LA: LC/APC | |||||
| 12 | SM: Singlemode | LSZH: Low Smoke Zero Halogen | LC: LC/UPC | |||||
| 24 | IAP: Interlocking Armored Plenum | SA: SC/APC | ||||||
| IO: Indoor/Outdoor | SC: SC/UPC | |||||||
| RIB: Ribbon | ST: ST |
