900um, 2mm or 3mm Cable, Tail Boot, Soft Tail
Set, Singelmode, 25 Per Bag, Price Per Pack
CAM-FICOSCAPC (SC/APC)
CAM-FICOLCSM (LC/APC)
CAM-FICOSCSM (SC)
Field Installable Connectors
Product Overview

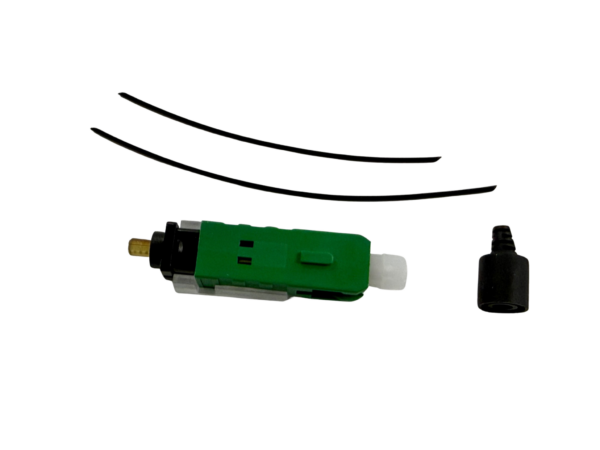

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at both the equipment and fiber patch panels. This connector system features high installation quality, success rate and reliability.
Applications:
FTTH & Outdoor Fiber Terminal End
Harsh Environment
FTTA BBU RRU
Data Video Transmission
Optical Fiber Access Of Mobile Base Station
| Parameter | Specification |
| Length | 45mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of Ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -20~+75℃ |
| Storage Temperature | -40~+85℃ |
| Mating Times | 500Times |
| Cable Diameter | Round cable：0.9mm/250um Bare fiber（Bare optical fibers must be equipped with protective tubes |
| Connector Type | SC |
