- Fiber Type: Singlemode (G.657.A1 or G.652.D)
- Jacket Material: UV-resistant HDPE
- Jacket Type:
- Dielectric: Non-metallic
- Toneable: Includes 24 AWG locate wire
- Strength Members: Dual fiberglass rods
- Standard Aerial Span (Unsupported):
- Dielectric: Up to 200 ft (60 m)
- Toneable: Up to 180 ft (55 m)

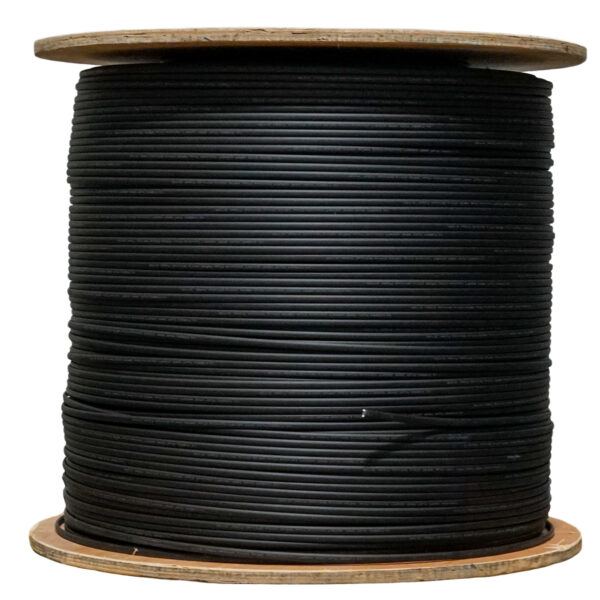

Flat Drop Fiber
Product Overview
NetSource’s Flat Drop Cable is a durable, high-performance solution for fiber-to-the-premises (FTTP) and broadband deployments. Offered in 1, 2, 4, 6, 8, and 12 fiber counts, this compact cable is available in both dielectric and toneable versions to meet diverse installation requirements.
The dielectric version features a lightweight, non-metallic design with no grounding needed. The toneable version integrates a 24 AWG copper locate wire for easy detection in underground applications. Both variants include a UV-resistant high-density polyethylene (HDPE) jacket and dual fiberglass strength members, making them suitable for aerial, duct, or direct-buried use.
With a flat profile and proven field reliability, this cable supports rapid deployment in access networks, MDUs, and residential drops.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Storage Temperature: -40°C to 75°C (-40°F to 167°F)
- Installation Temperature: -30°C to 60°C (-22°F to 140°F)
- Minimum Bend Radius: 10x cable height (loaded), 5x (unloaded)
- Tensile Load:
- Installation: 600 N (135 lbf)
- Long-Term: 135 N (30 lbf)
- Crush Resistance: 220 N/cm (125 lbs/in)
- Outer Dimensions:
- Dielectric: ~4.8 mm x 8.0 mm
- Toneable: ~4.8 mm x 10.2 mm
- Weight: 30–45 lbs/km (varies by configuration)
- Standards Compliance: RoHS and REACH
- Supports multiple installation methods
- Dielectric and toneable options
- Flat, compact form for easy installation
- Embedded strength members for added durability
- Lightweight for fast handling and reduced labor
- Designed for long-term outdoor performance
