- Fiber Capacity: Up to 96 LC fibers per 1RU
- Cassette Configuration: 8F, 12F, and 24F MTP® ferrules
- Connector Options: LC/APC, LC/UPC, SC/APC, SC/UPC
- Fibers: Singlemode, Multimode OM3 and OM4
- Rear Interface: 12F or 24F MTP® (Elite or Standard)
- Cassette Polarity: Method A, B, C, and Universal
- Compatibility: Designed for use with SOURCE+ HD panels, trunks, and harnesses

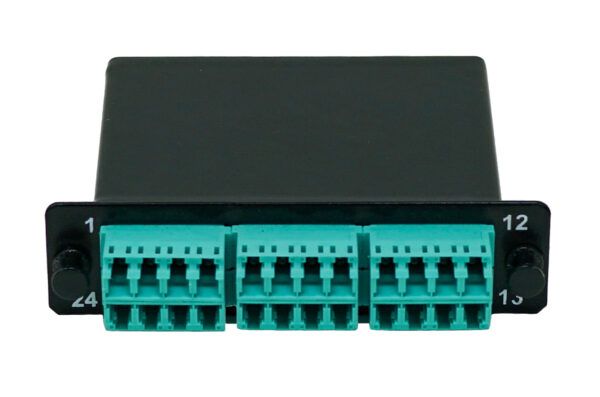

HD Cassettes
Product Overview
NetSource’s SOURCE+ HD Series MTP® Cassettes are engineered for high-density fiber applications, delivering efficient and compact connectivity in space-constrained environments. Designed to accommodate up to 96 LC fibers per rack unit (1RU), these modular cassettes break out MTP® trunk cables into LC or SC connections, simplifying fiber management and speeding up installation.
The HD Series supports 8F, 12F, and 24F MTP® ferrules and integrates seamlessly with SOURCE+ trunks, enclosures, and patch cords to provide a complete plug-and-play solution. With standard and low-loss options, as well as support for Method A, B, C, and universal polarity configurations, NetSource HD cassettes are ideal for 10G/40G/100G network migration.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Standards Compliance: RoHS and REACH
- Ideal for data centers, enterprise backbones, and central office deployments
- Factory-terminated and 100% tested for performance
- Reduces rack space requirements without sacrificing fiber count
- MTP®-MTP® conversion cassettes available for 40G/100G support
- Optional internal shutters reduce waste and protect connections
- Universal polarity reduces part numbers and simplifies logistics
Part Number Chart
| Cassettes | – | Series | Fibers | MTP® Style | Type | Connector |
| CAS | HD1 | 8 | F: 12 Fiber Ferrule | XG: OM3 MM | LA: LC/APC | |
| 12 | X: 24 Fiber Ferrule | 4G: OM4 MM | LC: LC/UPC | |||
| 24 | SM: Single Mode | SA: SC/APC | ||||
| SC: SC/UPC |
Notes : add R for reverse Pull (Pull from the Terminal end) Lengths over 950ft on a reel
Insertion Loss
| Multimode (OM3/OM4) – 850nm & 1300nm | Singlemode (OS2) – 1310nm & 1550nm | Minimal Return Loss |
| LC/SC: 0.20 dB typ/ 0.25 dB max | LC/SC: 0.20 dB typ./ 0.25 max | LC/APC: -65 dB |
| MTP®: 0.25 dB typ./ 0.35 dB max | MTP®: 0.50 dB typ./ 0.60 dB max | LC/UPC: -57 dB |
| Min. Return Loss: -25 dB | MTP®: -60 dB |
