- Connector Types: LC compatible with Johon fitting for Samsung, Full AXS® for Ericsson
- Fiber Type: Single-mode
- Jacket Material: PVC over foil tape
- Power Conductors: 2 x 6 AWG or 2 x 8 AWG pairs

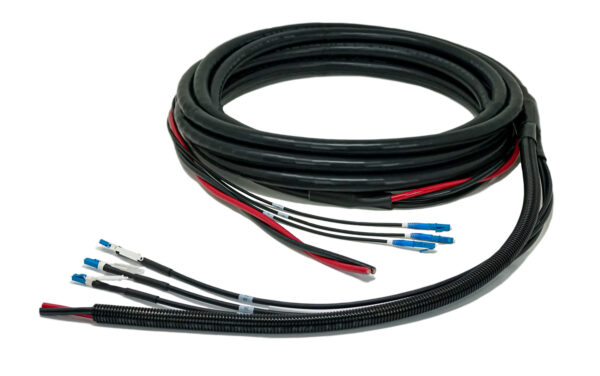

Hybrid Cable Assemblies
Product Overview
NetSource’s 6 AWG and 8 AWG Hybrid Cable Assemblies are engineered for Remote Radio Unit (RRU) applications, offering efficient 5G small cell deployments, including those utilizing C-band spectrum. These assemblies combine power and fiber optics into a single, robust assembly, featuring Full AXS® connectors for Ericsson RRUs and LC connectors compatible with the Johon fitting for Samsung RRUs. This integrated design enhances scalability, reduces deployment times, and minimizes installation complexity compared to separate power and fiber cables, making it ideal for modern wireless communication networks.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Standards Compliance: RoHS and REACH
- Combines power and fiber for faster deployment
- Minimizes cabling needs, streamlining network growth
- Ensures long-term performance in challenging environments
- Engineered for longevity in outdoor conditions
- Wireless Solutions
- Wireless Sheet
- 8 AWG Hybrid Jumpers
- 6 AWG Hybrid Jumpers
- C-Band Hybrid Assemblies
- HE04SMAGLC683VX-XXX
- HE04SMAGLC673VX-XXX
- HE04SMA1LC683VX-XXX
- HE04SMA1LC673VX-XXX
- HE03SMAGLC683VX-XXX
- HE03SMAGLC663VX-XXX
- HE03SMA1LC683VX-XXX
- HE03SMA1LC663VX-XXX
- HE02SMAGLC683VX-XXX
- HE02SMAGLC673VX-XXX
- HE02SMAGLC663VX-XXX
- HE02SMA1LC683VX-XXX
- HE02SMA1LC673VX-XXX
- HE02SMA1LC663VX-XXX
- HE01SMAGLC683VX-XXX
- HE01SMAGLC663VX-XXX
- HE01SMA1LC683VX-XXX
- HE01SMA1LC663VX-XXX
Insertion Loss Chart
| Characteristics | Standard | Singlemode |
| LC, SC | ||
| Insertion Loss (Maximum) | TIA 568-C.2 | 0.75 dB |
| NetSource, Inc (STD Loss) | ≤0.20 dB | |
| NetSource, Inc (Low Loss) | ≤0.15 dB | |
| Return Loss (Minimum) | TIA 568-C.3 | -26 dB |
| NetSource, Inc | ≤-58 dB |
