- Connector Types: LC, SC with UPC or APC polish, ST, and FC
- Fiber Type: Single-mode (OS2), Multimode (OM1, OM3, OM4, OM5)
- Cable Type: Ribbon, loose tube, or tight buffered
- Jacket Options: OFNP (plenum), OFNR (riser), LSZH, Interlocking Armored, or Aluminum Tape
- Breakout ODs: 900µm, 2.0mm, or 3.0mm (staggered or straight)
- Pulling Eye: Optional
- Polarity Options: Straight or Crossed
- Pulling Eye: Available upon request
- Custom built to customer specifications including length, breakout, and labeling

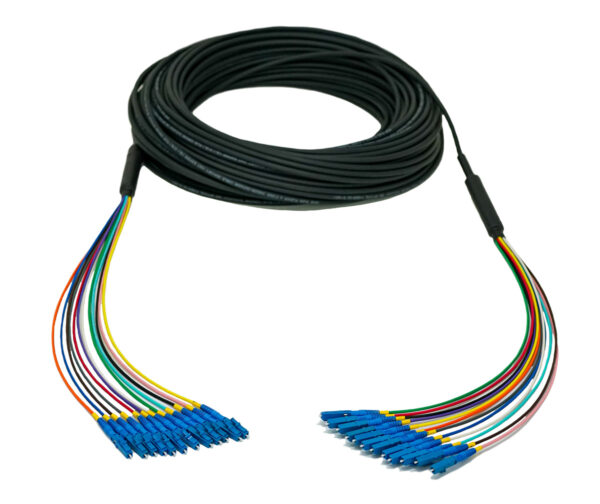

Indoor/Outdoor Armored and Non-Armored Fiber Trunks
Product Overview
NetSource’s Indoor/Outdoor Multifiber Trunk Cable Assemblies deliver a rugged, high-performance solution for a wide range of fiber network applications—including broadband, wireless, enterprise, data centers, campus networks, and building-to-building connections. Manufactured in the U.S. and built to project specifications, these assemblies provide reliable optical performance across both indoor and outdoor environments.
Designed for flexibility and durability, each trunk is factory-terminated and 100% tested to ensure low insertion loss and consistent performance. UV-resistant, riser-rated jackets support conduit, riser, and aerial installations, while interlocking armor enhances mechanical protection and rodent resistance. Optional pulling eyes and staggered breakouts simplify routing and speed up deployment in complex layouts.
NetSource custom-builds every trunk assembly to meet exact network requirements, offering a wide range of fiber types, connector options, leg diameters, and cable lengths to support high-performance infrastructure across industries.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Conformance Standards
- Media Downloads
- Operating Temperature: -40°C to +70°C (-40°F to 158°F)
- Storage Temperature: -40°C to +70°C (-40°F to 158°F)
- Installation Temperature: 0°C to +60°C (32°F to 140°F)
- Minimum Bend Radius: Typically 20× cable OD during install; 15× cable OD installed
- Water Blocking: Gel-free with water-swellable yarns
- Rodent Protection: Yes
- Custom-built assemblies provide scalable, high-performance infrastructure while reducing installation time and maintaining professional cable management
- U.S.-manufactured to project specifications for consistent quality, reliability, and long-term performance
- Optical Performance:
- FOTP-171 (TIA/EIA-455-171) – Insertion Loss
- FOTP-107 (TIA/EIA-455-107) – Return Loss
- Endface Geometry & Inspection:
- IEC 61300-3-35 – Visual Inspection
- IEC 61755-3-1 – Endface Geometry — Single-Fiber
- IEC 61755-3-32 – Endface Geometry — MT Ferrules (Multifiber)
- Environmental/Mechanical (Connectors & Assemblies):
- GR-326 – Single-Fiber Connector Performance, Durability & Mechanical Requirements
- GR-1435 – Multifiber Connector Performance, Durability & Mechanical Requirements
- Indoor Cable Requirements:
- UL 1666 / NFPA 262 – Indoor Fiber Cable Flame & Smoke Requirements (Riser & Plenum)
- Environmental Compliance:
- RoHS/REACH – Environmental Compliance
Insertion and Return Loss
| Characteristics | Standard | Multimode LC, SC, ST, FC |
Singlemode LC, SC, ST, FC * (LC, SC, FC-APC) |
| Insertion Loss (Maximum) | TIA 568-C.3 | .75dB | .75dB |
| NetSource, Inc. (std loss) | ≤.25dB | ≤.20dB | |
| NetSource, Inc. (low loss) | ≤.15dB | ≤.15dB | |
| Return Loss (Minimum) | TIA 568-C.3 | -20dB | -26dB |
| NetSource, Inc. | ≤.25dB | ≤-58dB (≤65dB) |
