- Connector Types: IP-LC/SC/MPO with UPC or APC polish
- Hybrid Connectors: 6/8/10AWG
- Fiber Types: Singlemode (OS2), Multimode (OM1–OM5)
- Cable Type: Armored, Indoor/Outdoor (I/O), and OSP
- Jacket Sizes: 4.8mm – 7mm

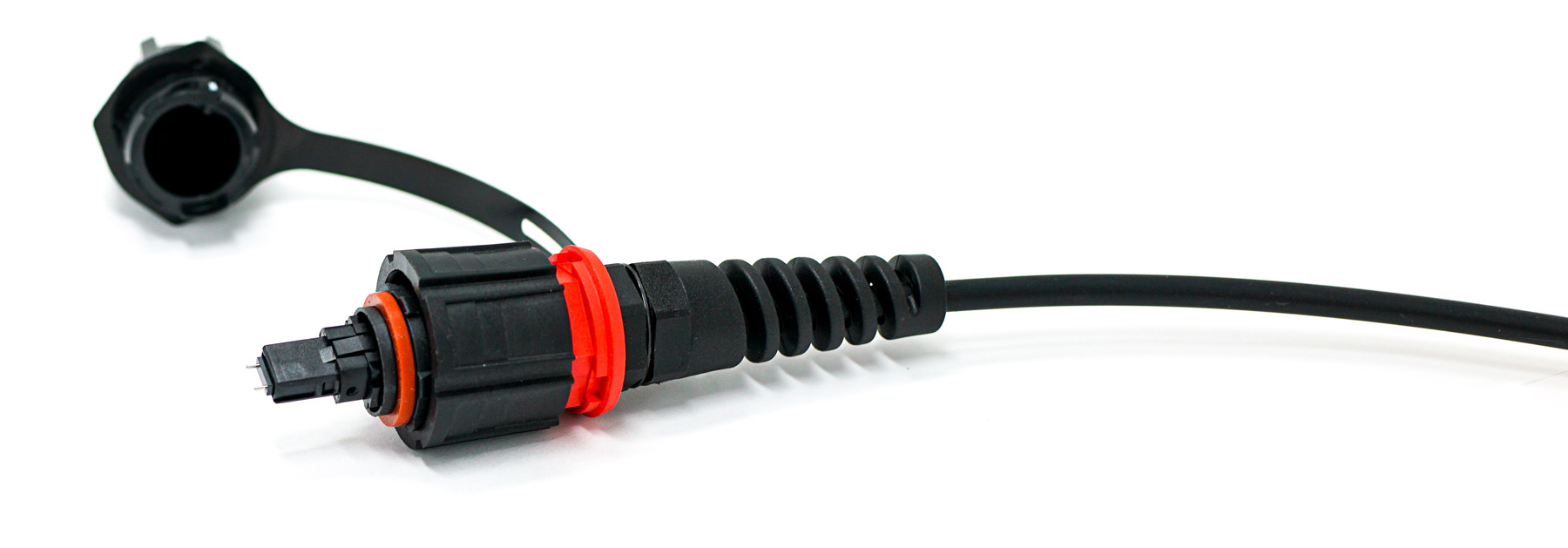

LC, SC, & MPO Fiber Assemblies
Product Overview
NetSource’s LC, SC, and MPO Fiber Assemblies are rugged, pre-terminated cable solutions engineered for harsh outdoor and wireless broadband environments. These assemblies support simplex SC, duplex LC, and high-density 12/24-fiber MPO interfaces, available in both singlemode and multimode options. Designed for quick deployment, each assembly features a waterproof, dust-proof, and corrosion-resistant connector body, ensuring long-term reliability even in the most challenging conditions. One-hand bayonet mating and color-coded locking mechanisms make installation intuitive while minimizing the risk of accidental disconnects. Compatible with a variety of cable types, including armored, indoor/outdoor, and tactical, these assemblies are ideal for wireless backhaul, outdoor small cell, and remote radio head (RRH) applications.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- UV and Corrosion Resistance: Materials withstand outdoor exposure and harsh climates
- Mating Durability: 100 cycles
- Ingress Protection: IP68 rated for water and dust resistance
- Standard Compliance: RoHS and REACH
- Flame Rating: UL 94-VO
- Pull Force: 55 lbs
- Salt Mist: IEC 61300-2-26
- Vibration: IEC 61300-2-9
- Shock: IEC 61300-2-9
- Supports rapid deployment in wireless backhaul, RRH, and outdoor fiber links
- One-hand bayonet locking mechanism enables fast, secure mating
- Protects connections from contaminants and moisture for long-term reliability
