- Port Count: 2, 4, 6, 8, and 12 ports
- Fiber Type: Single-mode (OS2)
- Cable Type: Available in Self-Supporting Toneable or Dielectric options
- Termination: OptiTap®-style single-fiber connectors for customer drop terminations
- Cable Lengths: Standard lengths range from 50 – 2,500 ft, with customization available based on deployment needs
- ROHS/REACH compliant
MST – Stubbed
Product Overview

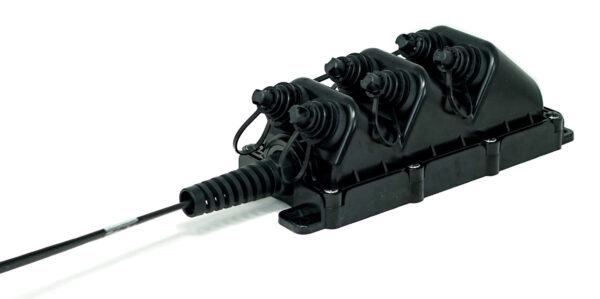

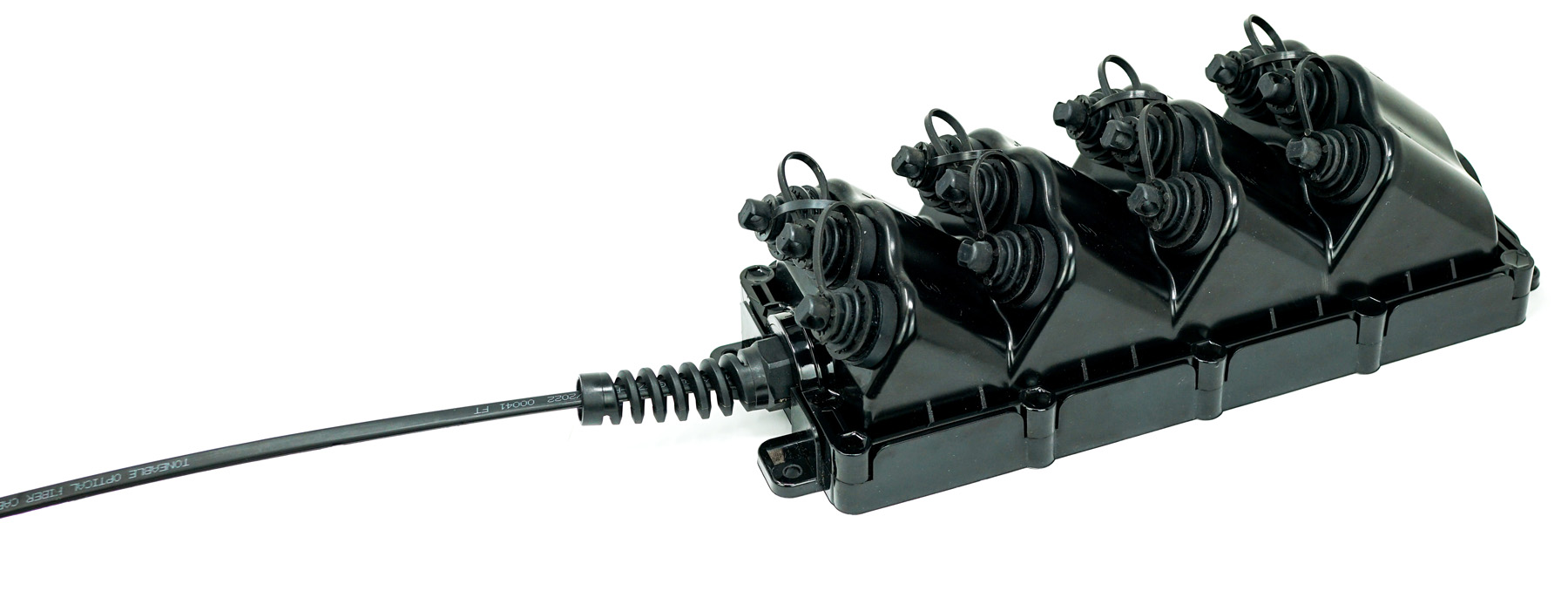

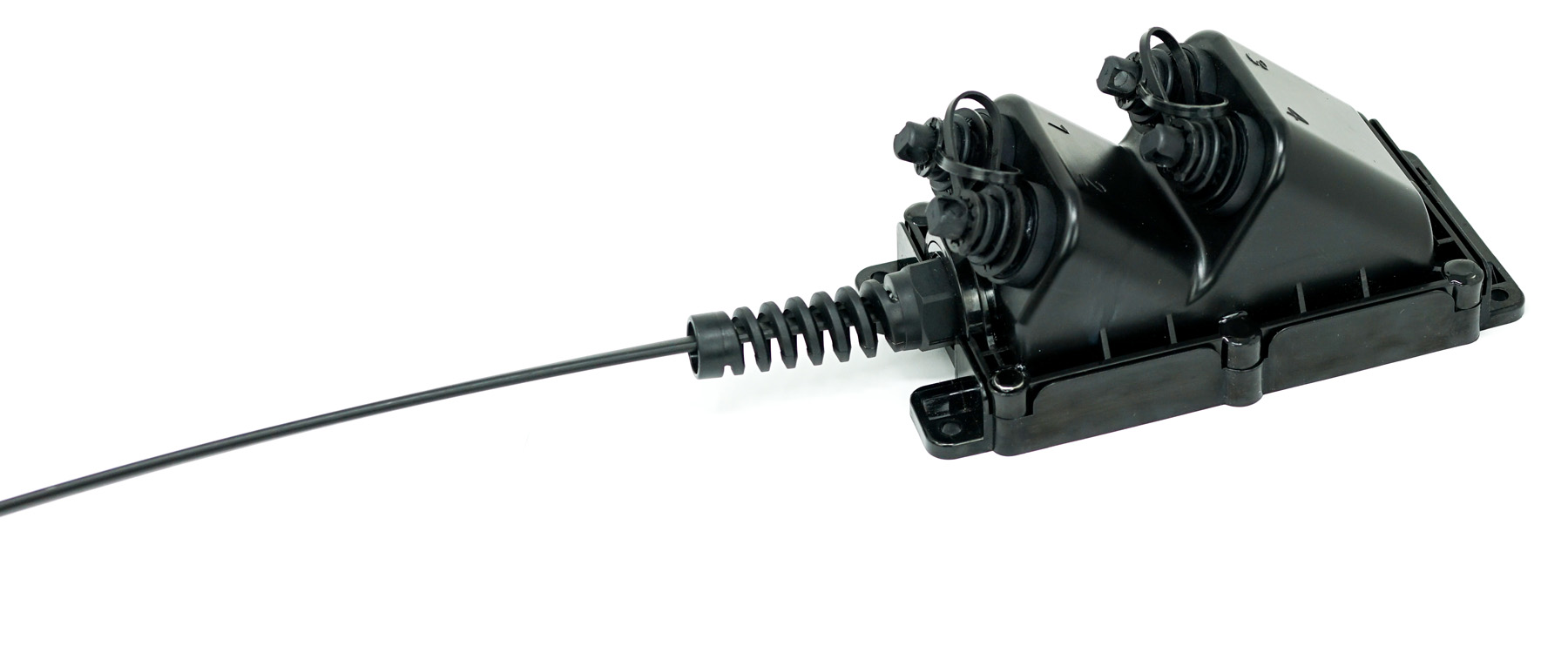

NetSource’s Hardened SC/APC Multiport Terminals, manufactured in the U.S., provide a pre-connected, durable solution ideal for fiber-to-the-x (FTTx) installations in various outdoor environments. Designed for both underground and aerial installations, these IP68-rated terminals are available in multiple configurations (2, 4, 6, 8, and 12 ports), offering flexible and cost-effective network deployment options. With over two decades of proven technology, they are factory-terminated and environmentally sealed to guarantee high performance and reliability in harsh conditions. By routing multiple drops to a single splice location, these terminals streamline network infrastructure, reducing installation complexity and time. Suitable for aerial, pole, pedestal, handhole, and wall-mounted installations, they provide the ruggedness and flexibility needed for fast and efficient FTTx network expansion.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Conformance Standards
- Downloads
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Cold Mate/Demate Performance: Tested to -40°C (-40°F)
- Ingress Protection: IP68 — OptiTap® Interface
- Hardened connector interfaces — Reliable plug-and-play connectivity for outside-plant applications
- Factory terminated and tested — Reduces field splicing and installation time
- IP68-rated design — Protects against water, dust, and harsh environmental conditions
- Integrated PLC splitter — Enables a single feeder fiber to serve multiple subscriber drops, reducing distribution fiber requirements
- Multiple port and splitter configurations — Provides flexibility for network deployment and expansion
- Compact, rugged housing — Combines fiber splitting and distribution in a single enclosure for demanding outdoor environments
- Flexible installation — Supports pole, wall, strand, and below-grade mounting while simplifying subscriber connections
- Optical Performance:
- FOTP-171 (TIA/EIA-455-171) – Insertion Loss
- FOTP-107 (TIA/EIA-455-107) – Return Loss
- Endface Geometry & Inspection:
- IEC 61300-3-35 – Visual Inspection
- IEC 61755-3-1 – Endface Geometry — Single-Fiber
- Environmental/Mechanical (Connectors & Assemblies):
- GR-3120 – Environmental, Mechanical & Performance Requirements
- GR-771 – Outdoor Terminal / Closure Environmental & Mechanical Requirements
- Outdoor Cable Requirements:
- GR-20 – Outside Plant Cable Environmental & Mechanical Requirements
Part Number Chart
| HE | – | # OF PORTS | P | CABLE TYPE | CABLE | CONNECTOR | – | LENGTH | UNIT |
| 2 | SM: Singlemode OS2 | D1: SST DIELECTRIC | 57: HARDENED SC/APC | XXX | FT | ||||
| 4 | D3: SST TONEABLE | XXX | M | ||||||
| 6 | |||||||||
| 8 | |||||||||
| 12 |
Notes: add R for reverse Pull (Pull from the Terminal end)
Lengths over 950 ft on a reel
Notes : add R for reverse Pull (Pull from the Terminal end) Lengths over 950ft on a reel
Insertion and Return Loss
| Connector Type | Fiber Type | Insertion Loss, Maximum | Insertion Loss, Typical | Return Loss, Maximum |
| OptiTap® Single-Fiber Connector | Single-mode (OS2) | 0.50 dB | 0.15 dB | -65 dB |
Dimensions
| Port Configuration | H (in/mm) | L (in/mm) | W (in/mm) |
| 2/4PORT | 3.65 / 92.71 | 8.26 / 209.80 | 4.38 / 111.25 |
| 6PORT | 3.65 / 92.71 | 11.25 / 285.75 | 4.38 / 111.25 |
| 8PORT | 3.65 / 92.71 | 11.09 / 281.69 | 4.38 / 111.25 |
| 12PORT | 4.25 / 107.95 | 14.25 / 361.95 | 5.32 / 135.13 |
