- Part Number: HE-04NID-02
- Connector Capacity: 4 SC/APC
- Splice: Up to 6 splices
- Splitter: 1×2 or 1×4
- Cable Storage Capacity: Up to 50 feet
- Cable Input: ROC, flat drop, and round cables up to 7mm
- Cable Output: 2.0mm, 3.0mm, 4.8mm
- Grounding: Integrated ground post and wire
- Duct Entry: Accepts up to 1” duct for added protection
- Dimensions: 7.00” x 7.00” x 2.275”
NID: NetSource 4 Fibers
Product Overview

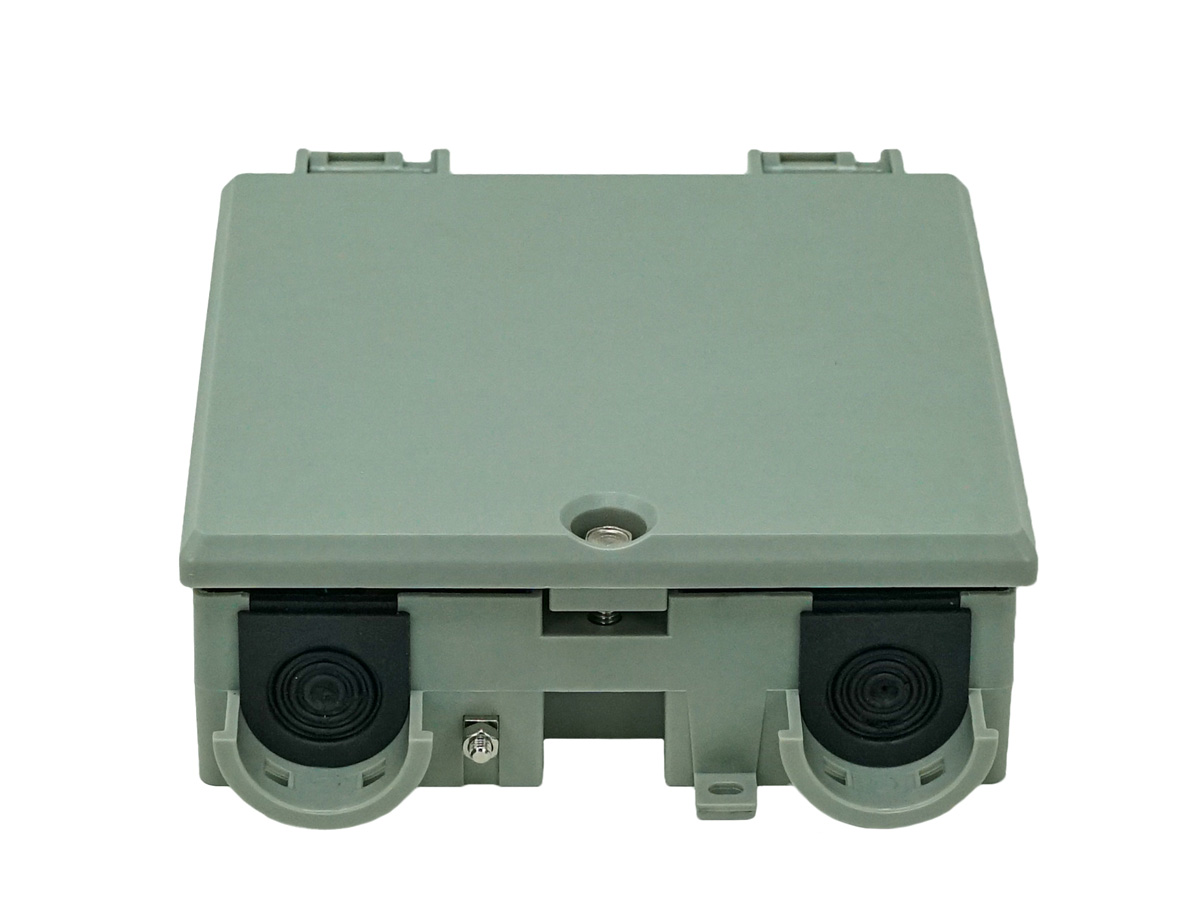

The NetSource HE-04NID-02 is an outdoor enclosure used at subscriber entry points for drop cable termination and transitions between outside plant (OSP) and inside plant (ISP) cabling in fiber-to-the-home (FTTH) and fiber-to-the-premise (FTTP) applications. It supports up to four subscriber terminations and mounts to an exterior wall.
The enclosure includes an internal splice tray with capacity for up to six fiber splices and accommodates 4 SC or 8 LC connections for patch-and-splice configurations. It supports splitter installations up to 1×4. The enclosure accommodates approved flat or round cable constructions and provides internal storage for up to 50 feet of cable. It accepts duct entries up to 1 inch, and the lid may remain hinged open or be fully removed.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature Range: -40°C to 70°C (-40°F to 158°F)
- Outdoor UV Resistance: Meets Telcordia GR-49
- Material: ABS+PC (Acrylonitrile Butadiene Styrene + Polycarbonate)
- Ingress Protection: IP65 (dust tight and protected against water jets)
- Impact Rating: IK07 – resists moderate external impacts
- Flammability: UL 94 requirements
- Standards Compliance: RoHS and REACH
- Hinged lid can be secured open at 60 degrees or fully removed for simplified access and maintenance
- Built-in fiber storage ring holds up to 50 feet for organized, space-efficient installations
- A grommeted pass-through at the back of the enclosure provides a clean and protected pathway for cable routing
