- Connector Types: LC or SC with UPC or APC polish
- Fiber Type: Indoor, Indoor/Outdoor, Outside Plant with 250µm or Ribbon
- Cable Construction: Dielectric or Armored
- Enclosure Sizes: 1RU, 2RU, 4RU, 6RU
- Mounting: 19” or 23” rack mount
- Material: 16 gauge CRS
- Color: Black or custom available

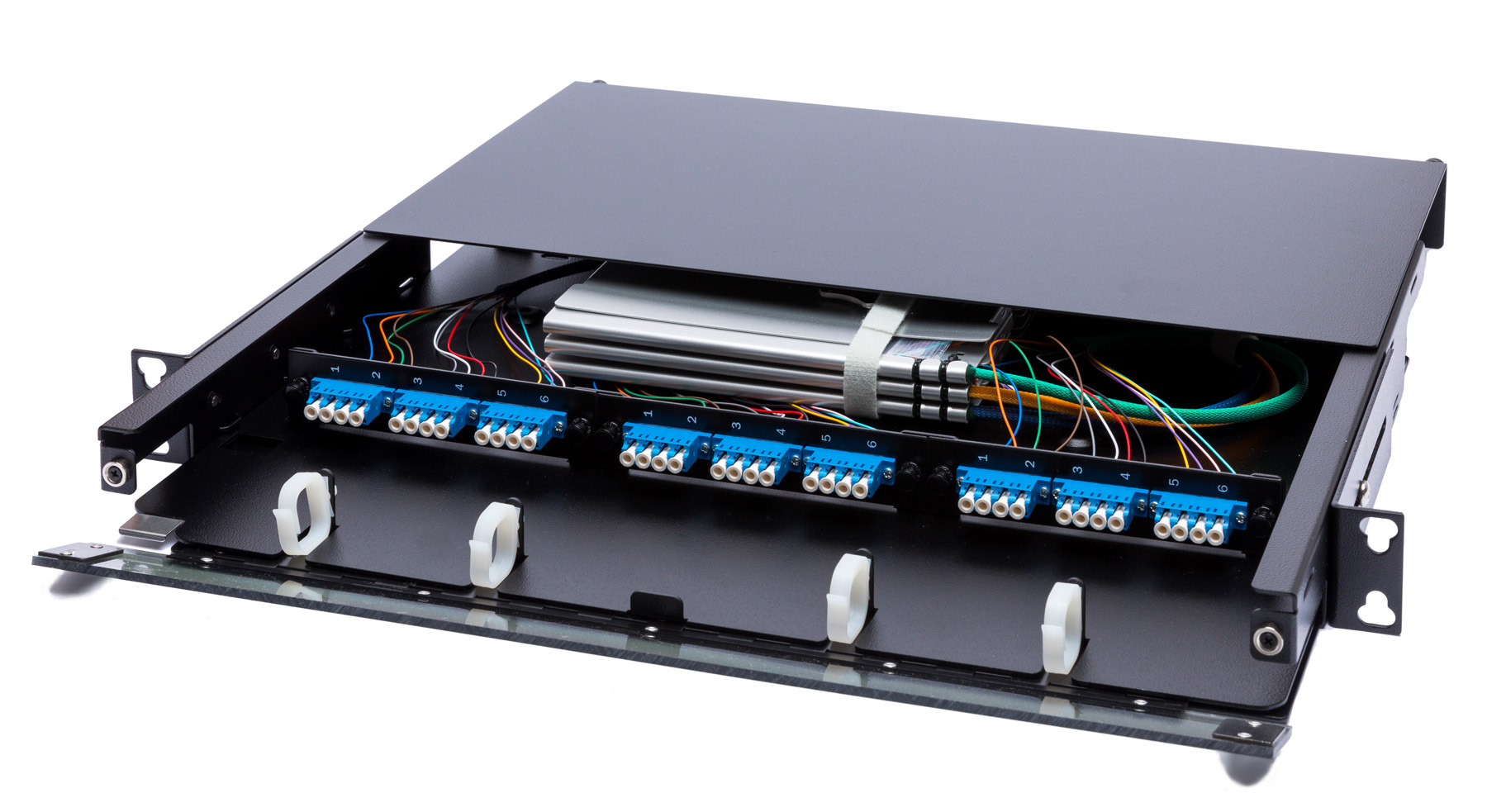

Pre-Wired Rack Mount Enclosures
Product Overview

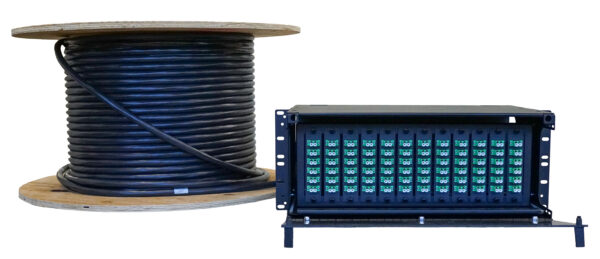

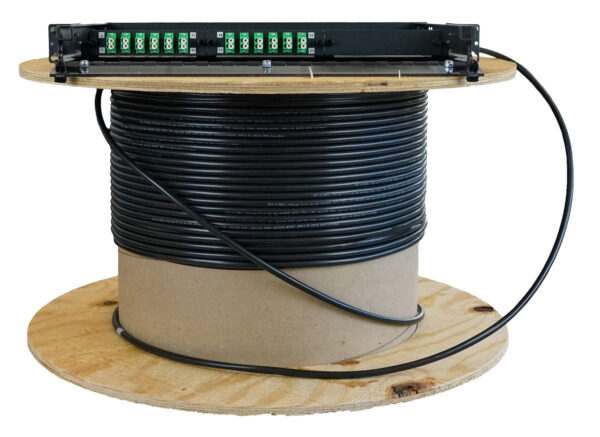

NetSource’s Pre-Wired Rack Mount Enclosures deliver a fully integrated, high-density fiber solution engineered for fast deployment and long-term reliability. Factory pre-terminated with LC or SC connectors and stubbed with Indoor, Outdoor, or Indoor/Outdoor cable, these enclosures are ideal for central offices, headends, and data centers. Enclosures are available in 1RU to 6RU sizes, with fiber capacities ranging from 6 to 288 fibers depending on configuration. Each unit arrives splice-ready to reduce field labor and speed up network rollout.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Ingress Protection: Indoor rated (IP20); sealed stub grommet
- Standards Compliance: RoHS, REACH, and GR-326
- Reduces field splicing and installation time
- Factory tested to ensure confidence in reliability
- Cable lengths per your specifications
