- Connector Types:
- End A: SC/APC ferrule housing snapped on after pull-through
- End B: SC/APC, LC, Optitap®
- Fiber Type: Single-mode (OS2), Bend-Insensitive (G.657.A2 or G.657.B3)
- Cable Jacket Diameter: 3.0 mm
- Jacket Color: Black or White
- Insertion Loss: ≤ 0.25 dB
- Return Loss: ≥ 65 dB
- BABA and RDUP (RUS)-compliant configurations available
Pullable Fiber Cables
Product Overview

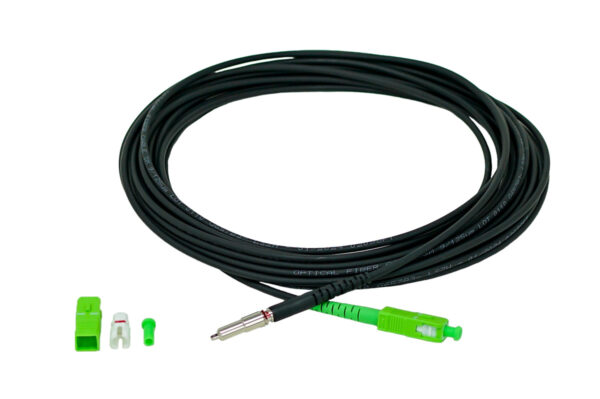

NetSource’s Pullable Fiber Drop Cable Assemblies are purpose-built for clean and secure installations in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks. Each assembly comes factory-terminated with an SC/APC ferrule and a threaded pull cap that screws onto the connector for protection during installation. The entire assembly is designed to be pulled through a wall, conduit, or microduct using the pull cap—ensuring the ferrule is shielded and the cable is routed without damage.
Once the assembly is pulled through the wall or duct, the pull cap is removed, and the SC/APC housing is snapped into place—no splicing, polishing, or field termination required. Built with bend-insensitive single-mode fiber (G.657.A2 or G.657.B3), this 3.0mm cable handles tight routing paths with ease. Assemblies are made to order and available in black or white jacket options to suit indoor or outdoor installations.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Conformance Standards
- Downloads
- Operating Temperature: -20°C to 70°C (-4°F to 158°F)
- Minimum Bend Radius:
- 5 mm (G.657.A2)
- 7 mm (G.657.B3)
- 3/8″ Installation Opening – Fits through small pathways for easier routing
- Built-In Pulling Eye – Simplifies and protects the assembly during installation
- Factory Terminated – Ready to install with consistent factory-controlled performance
- Splice-Free Installation – Eliminates field splicing and associated labor
- Quick Installation – Reduces installation time and overall labor costs
- RoHS/REACH: Environmental Compliance
