- Connector Types:
- End A: SC/APC ferrule housing snapped on after pull-through
- End B: SC/APC, LC, Optitap®
- Fiber Type: Single-mode (OS2), Bend-Insensitive (G.657.A2 or G.657.B3)
- Cable Jacket Diameter: 3.0 mm
- Jacket Color: Black or White
- Insertion Loss: ≤ 0.25 dB
- Return Loss: ≥ 65 dB
- BABA and RDUP (RUS)-compliant configurations available
Pushable Fiber Cables
Product Overview

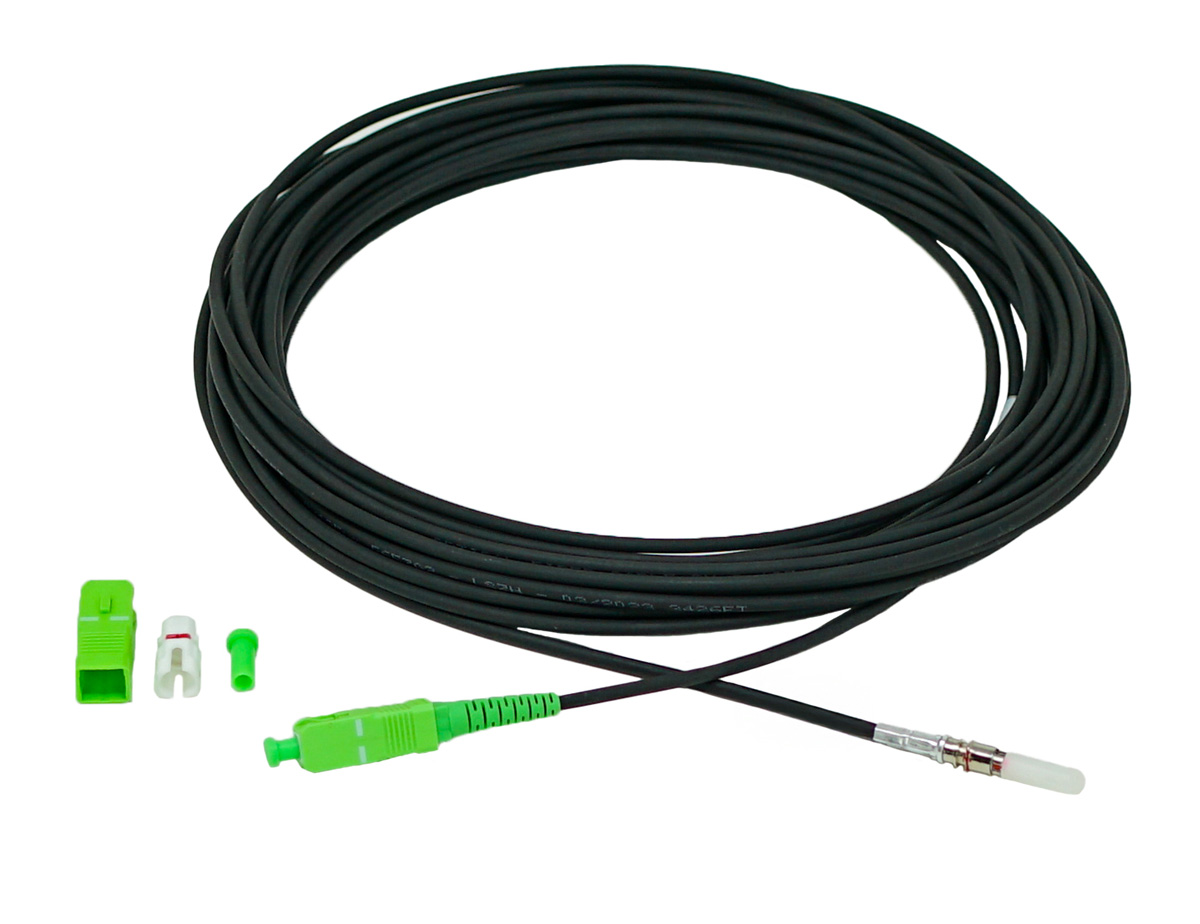

NetSource’s Pushable Fiber Drop Cable Assemblies are purpose-built for fast, clean installations in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks. Each assembly features a factory-terminated SC/APC connector designed to be pushed through microducts, conduit, or walls, then snapped directly into a terminal housing—eliminating the need for splicing or specialized tools.
If routing through a wall, simply drill a 3/8″ hole for cable entry. The SC/APC connector can be pushed through existing microduct or conduit—no drilling required—and once routed, the SC/APC housing snaps onto the ferrule without tools. The final connection is made by plugging directly into an Optical Network Terminal (ONT), wall plate, or enclosure.
Built with bend-insensitive single-mode fiber (G.657.A2 or G.657.B3), these rugged, low-profile assemblies are ideal for tight routing environments such as Single-Family Units (SFUs) and Multi-Dwelling Units (MDUs). Assemblies are made to order in custom lengths, with optional pulling eyes, and are available in black or white jackets.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Conformance Standards
- Downloads
- Operating Temperature: -20°C to 70°C (-4°F to 158°F)
- Minimum Bend Radius:
- 5 mm (G.657.A2)
- 7 mm (G.657.B3)
- 3/8″ Installation Opening – Fits through small pathways for easier routing
- Factory Terminated – Ready to install with consistent factory-controlled performance
- Splice-Free Installation – Eliminates field splicing and associated labor
- Quick Installation – Reduces installation time and overall labor costs
- RoHS/REACH: Environmental Compliance
