- Connection Method: Push-and-click with tactile and audible feedback
- Cable Types: SST-Drop™ Outdoor Cable, Flat Drop, and Round cable
- Termination: Factory-terminated and tested for low optical loss
- Application Types: Aerial, buried, or duct deployments
- Compatible Architectures: Distributed split and multi-level split

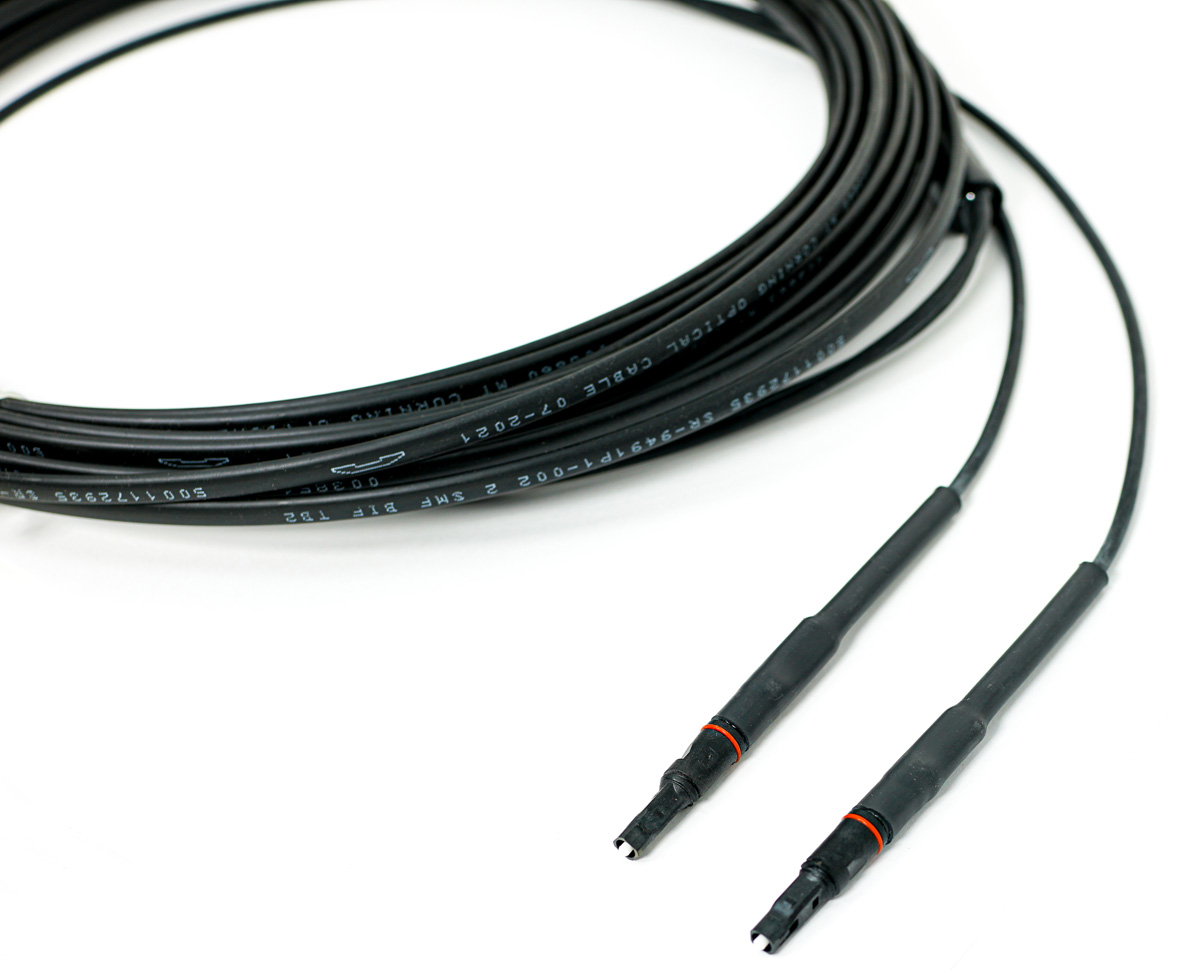

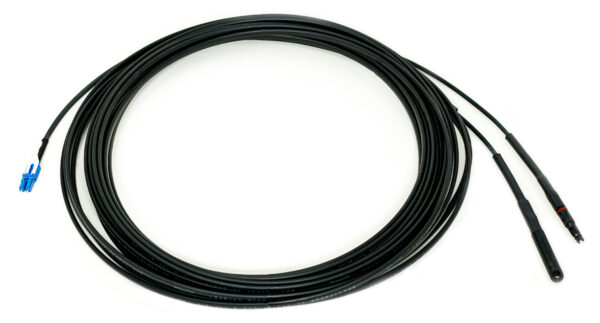

Pushlok® Cable Assemblies
Product Overview
Pushlok® cable assemblies are used for drop connections in broadband and wireless networks. They use a hardened Pushlok® interface that allows field installation without splicing. The assemblies are built on ROC™-style outdoor cable and are available in multiple lengths for aerial, buried, conduit, and façade routes. They are compatible with compact terminals, pedestals, and handholes, and their low-profile hardened design supports both new construction and retrofit work in tight installation spaces.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: –40°C to +70°C
- Storage Temperature: –40°C to +75°C
- Installation Temperature: –30°C to +60°C (cable dependent)
- Minimum Bend Radius:
- Loaded: 10x cable diameter
- Unloaded: 5x cable diameter
- UV Resistance: UV-stabilized jacket materials
- Water Resistance: Gel-free, dry-buffered construction for moisture protection
- Compliance Standards: RoHS, REACH, Telcordia GR-20, and GR-3120
- Fast and secure “stick-and-click” Pushlok® connector for rapid deployment
- Factory-terminated and performance-tested to ensure consistent optical loss and reliability
- Supports multiple fiber counts from 2 to 12 fibers for flexible network applications
- Compact, low-profile design enables installation in tight spaces and smaller terminals
- Compatible with a variety of cable types for versatile deployments
- Hardened construction built for outdoor and demanding environments
- Reduces labor and infrastructure needs, lowering overall installation costs
- Efficient use of space supports diverse building types and network layouts
- Smaller footprint helps reduce environmental impact while maintaining performance
