- Connector Types: OptiTap®, SC, LC (UPC/APC polish), and Pushlok®
- Jacket Sizes: 900um, 2mm, 3mm, and various lengths
- Cable Dimensions:
- Toneable Cable OD: 6.6 mm x 3.0 mm (0.26 in x 0.12 in)
- Dielectric Cable OD: 5.4 mm x 3.0 mm (0.21 in x 0.12 in)

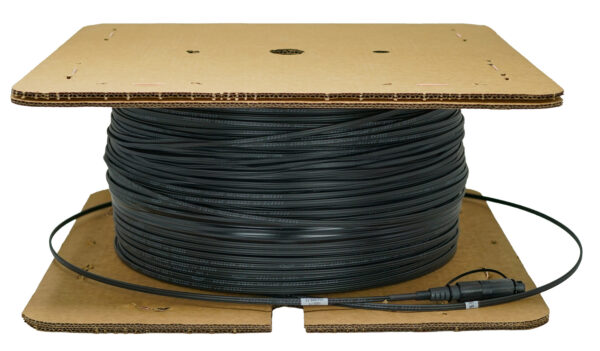

ROC Drop Cable
Product Overview

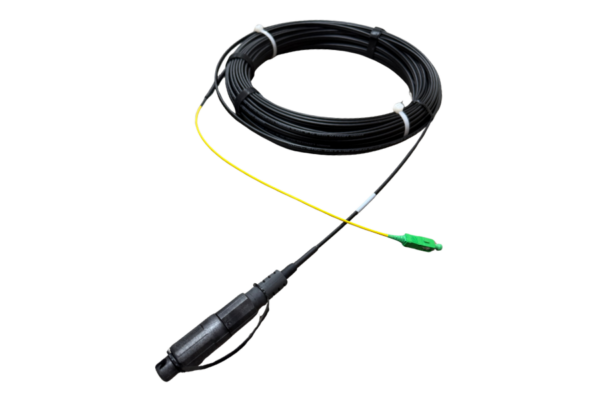

ROC™ Drop Cable Assemblies use Corning ROC™ cable with FastAccess™ Technology for fiber-to-the-home (FTTH) deployments. The gel-free construction and FastAccess™ jacket allow quicker cable preparation compared to traditional flat drop designs. These assemblies support aerial, buried, and conduit installations and are selected when easy handling, compact routing, or gel-free preparation provides an installation advantage. The lightweight round profile is preferred in conduit, buried, and façade routes where flat drop is less efficient. Toneable and dielectric versions are available, and assemblies come with OptiTap®, SC, LC (UPC/APC), or Pushlok® connectors. They may be supplied stubbed for splicing or pre-terminated on one or both ends for direct connection
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Conformance Standards
- Media Downloads
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Storage Temperature: -40°C to 75°C (-40°F to 167°F)
- Installation Temperature: -30°C to 70°C (-22°F to 158°F)
- Polyethylene (PE), UV-resistant and durable for outdoor applications
- OptiTap® Connector Pull Rating: 100 lbs
- Quick and tool-free cable access with FastAccess™ Technology when stubbed
- Compact and lightweight for easier handling and installation
- Provides flexible deployment options for aerial, buried, and duct installations
- Eliminates bonding and grounding needs with the dielectric version
- Simplifies buried cable detection with the toneable version
- Available with one or both ends connectorized
- Factory-terminated connectors for secure and dependable links
- Optical Performance:
- FOTP-171 (TIA/EIA-455-171) – Insertion Loss
- FOTP-107 (TIA/EIA-455-107) – Return Loss
- Endface Geometry & Inspection:
- IEC 61300-3-35 – Visual Inspection
- IEC 61755-3-1 – Endface Geometry — Single-Fiber
- IEC 61755-3-32 – Endface Geometry — MT Ferrules (Multifiber)
- Environmental/Mechanical (Connectors & Assemblies):
- GR-3120 – Environmental, Mechanical & Performance Requirements
- IP68 – Ingress Protection — OptiTip® / OptiTap® Interfaces
- Outdoor Cable Requirements:
- GR-20 – Outside Plant Cable Environmental & Mechanical Requirements
- Environmental Compliance:
- RoHS/REACH – Environmental Compliance
Part Number Chart
| HE | # of Fibers | Cable Type | Cable Construction | Connectors | Connectors | Breakout Length | Breakout Jacket | Length |
| 01 | SM: Singlemode OS2 | DX: Dielectric | 53: Inline | 53: Inline | S: 6” | 2: 2mm | XXXFT | |
| 02 | DT: Toneable | 57: OptiTap® | 57: OptiTap® | T: 12” | 9: 900um | XXXM | ||
| LC: LC/UPC | LC: LC/UPC | U: 18” | ||||||
| LA: LC/APC | LA: LC/APC | V: 24” | ||||||
| SC: SC/UPC | SC: SC/UPC | W: 36” | ||||||
| SA: SC/APC | SA: SC/APC |
Notes : add R for reverse Pull (Pull from the Terminal end) Lengths over 950ft on a reel
Insertion Loss
| Characteristics | Standard | Singlemode |
| LC, SC, ST, FC *(-APC & OptiTap®) | ||
| Insertion Loss (Maximum) | TIA 568-C.2 | 0.75 dB |
| NetSource, Inc (STD Loss) | ≤0.20 dB | |
| NetSource, Inc (Low Loss) | ≤0.15 dB | |
| Return Loss (Minimum) | TIA 568-C.3 | -26 dB |
| NetSource, Inc | ≤-58 dB *(≤-65 dB) |
