- Type: Patch, Patch and Splice, and Splice
- Adapter Types: LC, SC, ST
- Material: 16 Gauge CRS with a black powder-coated steel
- Locks available upon request
- Color: Black or custom available
Wall Mount Enclosures
Product Overview
NetSource Wall Mounts are compact, durable enclosures designed to securely house network components. They’re ideal for small-scale installations, edge locations, or customer premises equipment where floor space is limited. These wall-mountable units offer convenient cable access, clean organization, and reliable protection. Available in a range of sizes and configurations and accommodating fiber adapter panels and splice trays. Constructed from rugged materials and finished with a corrosion-resistant coating, these mounts are built to last. Designed with installer-friendly features, they help streamline setup and ongoing maintenance.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Ingress Protection: NEMA 3 or 4 rated (depending on model)
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Standards Compliance: RoHS and REACH
- Protects critical network components from environmental damage and tampering
- Low-profile design conserves wall space
- Multiple knockout and entry options for flexible cable routing
Part Number Chart
| Wall Mount | Size (LxWxH) | Description |
| WALL-SD1-1 | 7” x 7” x 1.5” | Patch only accepts 1 adapter panel or 1 cassette up to 24 fibers |
| WALL-SD1-2 | 13” x 9.25” x 3.5” | Patch only accepts 2 adapter panel or 2 cassette up to 48 fibers |

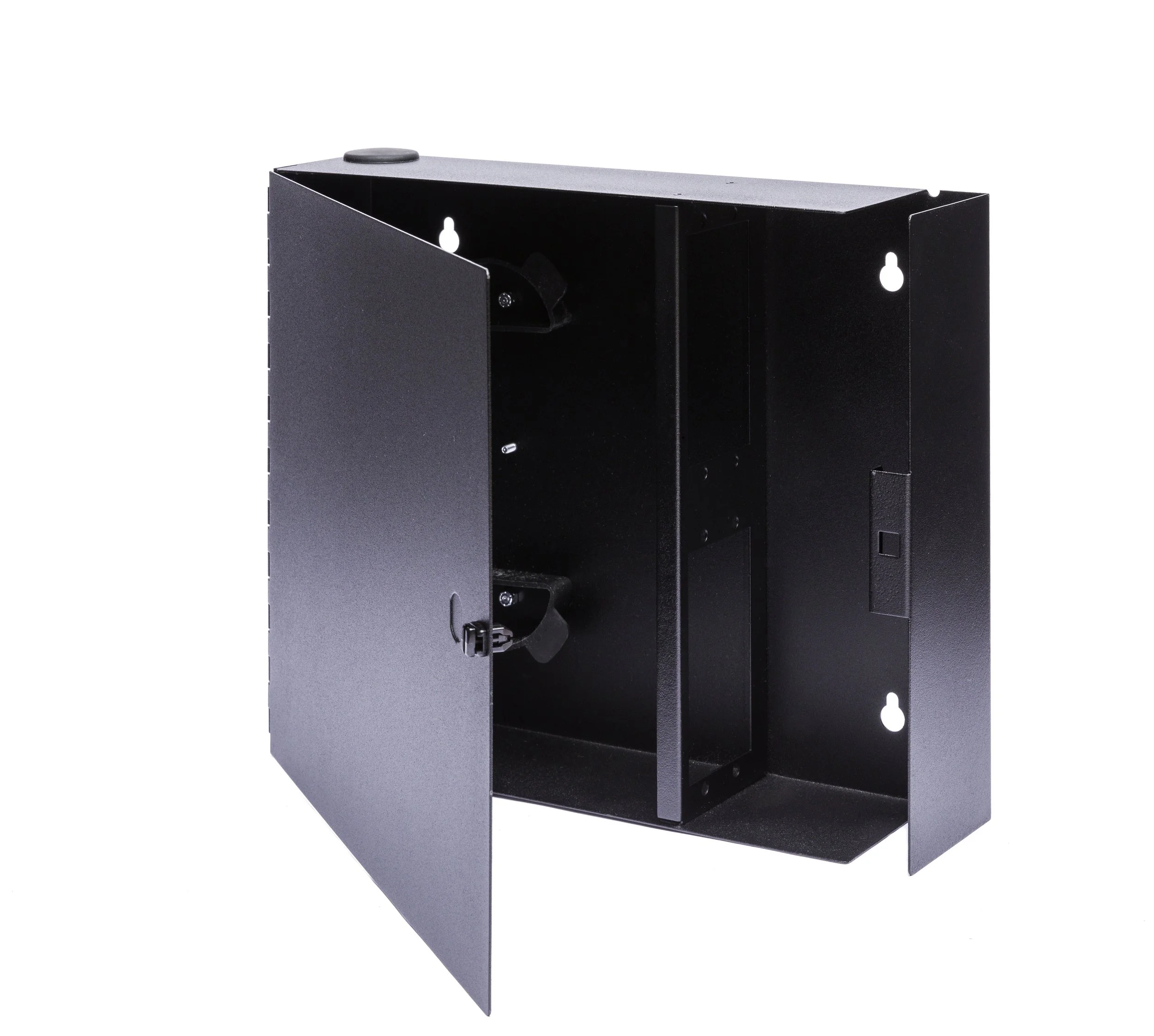

| WALL-SD1-4 | 13” x 11.5” x 3.5” | Patch only accepts 4 adapter panel or 4 cassette up to 96 fibers |
| WALL-SD1-8 | 17” x 12” x 5.87” | Patch only accepts 8 adapter panel or 8 cassette up to 192 fibers |
| WALL-SD1-12 | 17” x 16” x 5.87” | Patch only accepts 12 adapter panel or 12 cassette up to 288 fibers |
