- Part Numbers: SP-NID01-LGX
- Connector Capacity: 1 LGX Adapter Panel (up to 24 fibers)
- Splice: 12 splices
- Cable Input: Flat Drop, ROC, Round (3mm-16mm)
- Cable Output: Flat Drop, ROC, Round (3mm-16mm)
- Cable Storage Capacity: Up to 50 feet
- Duct Entry: 1” conduit
- Dimensions: 9.89” x 10.29” x 2.95”
NID: LGX
Product Overview

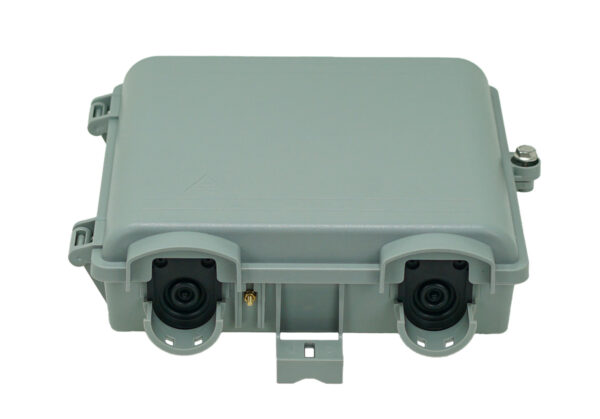

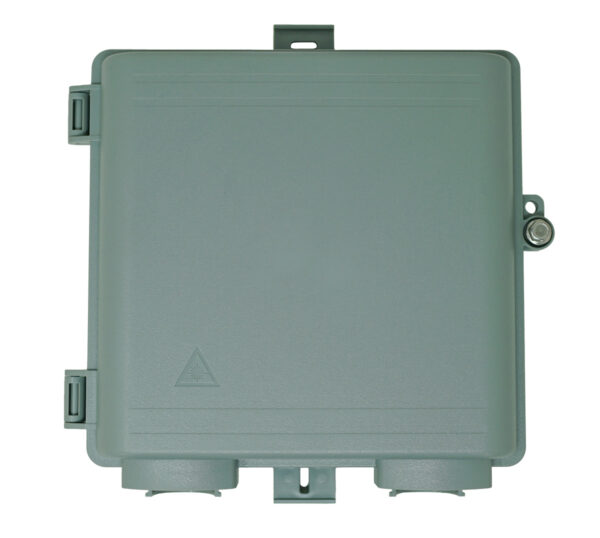

The NetSource SP-NID01-LGX is an outdoor enclosure used for fiber terminations in fiber-to-the-home (FTTH) and fiber-to-the-premise (FTTP) applications. It is used to transition between service provider feeder fibers and customer distribution fibers and may be mounted on a wall or pole.

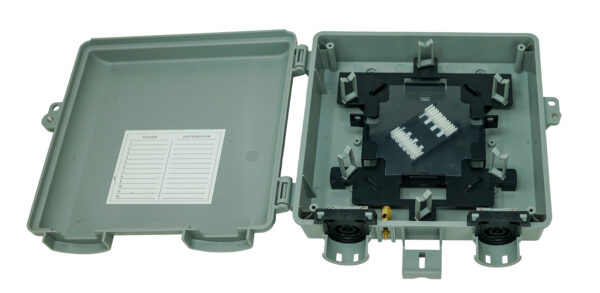

The enclosure accepts one LGX-footprint adapter panel and accommodates 12 SC or 24 LC connections. It includes an internal splice holder with capacity for up to six fiber splices and provides internal storage for up to 50 feet of fiber. The enclosure accommodates flat drop cables, ROC cables, and round cables from 3 mm to 16.2 mm outer diameter through designated cable entry locations.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Storage Temperature: -40°C to +70°C (-40°F to +158°F)
- Material: High quality PC+ABS
- Ingress Protection: IP65 rated
- Impact Resistance: IK09 rated
- Standards Compliance: RoHS and REACH
- Built-in fiber storage ring holds up to 50 feet for organized, space-efficient installations
- A grommeted pass-through at the back of the enclosure provides a clean and protected pathway for cable routing
