Product Overview

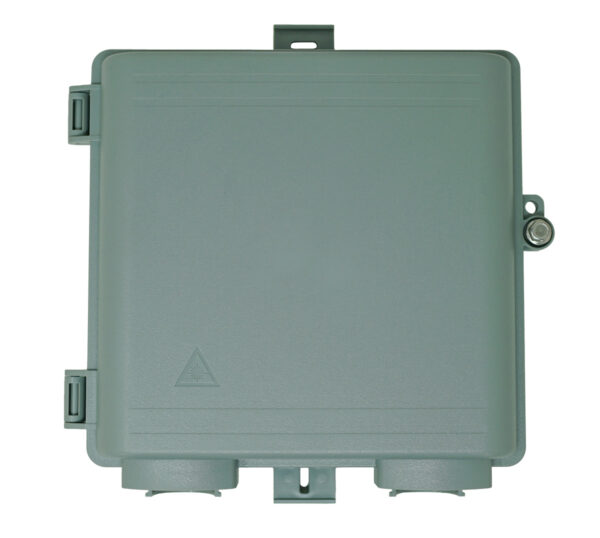

The NetSource SP-NID01-SPL is an outdoor enclosure used for single-fiber terminations at subscriber entry points in fiber-to-the-home (FTTH) and fiber-to-the-premise (FTTP) applications. It is used to transition between service provider feeder fibers and customer distribution fibers and may be mounted on a wall or pole. The enclosure accommodates flat drop cables, ROC cables, and round cables from 3 mm to 16.2 mm outer diameter and provides internal storage for up to 50 feet of fiber. It accepts one SC or two LC connections through designated cable entry locations and supports one optical fiber for splice-only configurations.
  • Part Numbers: SP-NID01-SPL
  • Connector Capacity: 1x SC Simplex
  • Cable Input: Flat Drop, ROC, Round (3mm-16mm)
  • Cable Output: Flat Drop, ROC, Round (3mm-16mm)
  • Cable Storage Capacity: Up to 50 feet
  • Duct Entry: 1” conduit
  • Dimensions: 9.89” x 10.29” x 2.95”
  • Operating Temperature: -40°C to +65°C (-40°F to +149°F)
  • Storage Temperature: -40°C to +70°C (-40°F to +158°F)
  • Material: High quality PC+ABS
  • Ingress Protection: IP65 rated
  • Impact Resistance: IK09 rated
  • Standards Compliance: RoHS and REACH

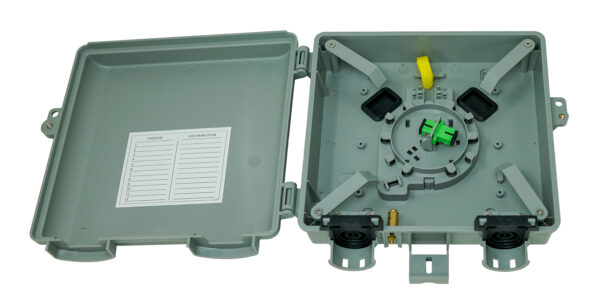

  • Built-in fiber storage ring holds up to 50 feet for organized, space-efficient installations

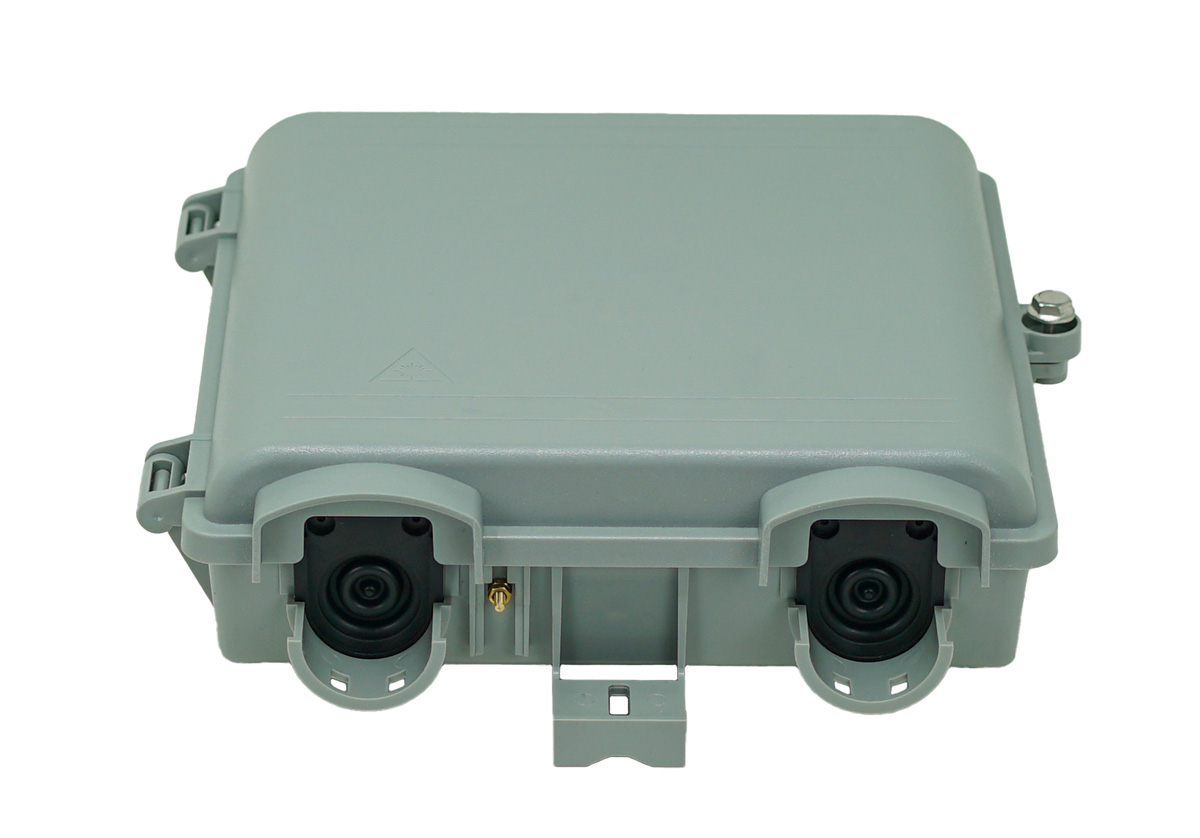

  • A grommeted pass-through at the back of the enclosure provides a clean and protected pathway for cable routing

Notes : add R for reverse Pull (Pull from the Terminal end)
Lengths over 950ft on a reel
