- Part Numbers: SP-NID01-ONU
- ONU Ubiquiti Models: Fiber Loco: Fiber Nano and Fiber XG
- Cable Input: Flat Drop, ROC, Round (3mm-16mm)
- Cable Output: Flat Drop, ROC, Round (3mm-16mm)
- Cable Storage Capacity: Up to 50 feet
- Duct Entry: 1” conduit
- Dimensions: 9.89” x 10.29” x 2.95”
NID: ONU
Product Overview

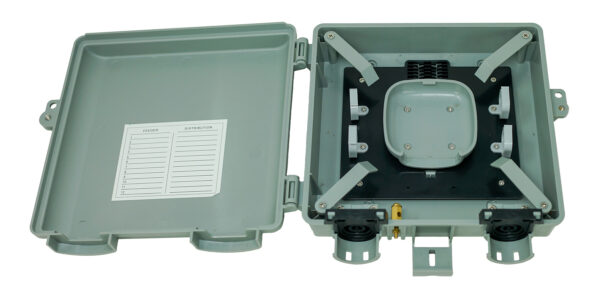

NetSource SP-NID01-ONU is an outdoor enclosure used at subscriber entry points for drop cable termination and transitions between service provider feeder fibers and customer distribution fibers in fiber-to-the-home (FTTH) and fiber-to-the-premise (FTTP) applications. It mounts to a wall or pole and is designed to house a Ubiquiti Optical Network Unit (ONU) as part of the network interface.
The enclosure accommodates flat drop cables, ROC cables, and round cables from 3 mm to 16.2 mm outer diameter and provides internal storage for up to 50 feet of fiber. It includes designated cable entry locations and internal mounting features for securing the ONU within the enclosure.
- Product Specifications
- Environmental and Mechanical Properties
- Features and Benefits
- Media Downloads
- Operating Temperature: -40°C to +65°C (-40°F to +149°F)
- Storage Temperature: -40°C to +70°C (-40°F to +158°F)
- Material: High quality PC+ABS
- Ingress Protection: IP65 rated
- Impact Resistance: IK09 rated
- Standards Compliance: RoHS and REACH
- Built-in fiber storage ring holds up to 50 feet for organized, space-efficient installations
- A grommeted pass-through at the back of the enclosure provides a clean and protected pathway for cable routing
