- Connector Types: 4 or 8 OptiTap®-compatible hardened adapters
- Splice Capacity: 4 splice trays, 24 fibers per tray (96 fibers total)
- Splitter Capacity: Up to 4 PLC splitters
- Preconfigured Options: Available with factory-installed pigtails and PLC splitters
- Input: OptiTap®-compatible hardened adapters
- Output: 2 feeder cable ports (10 mm–17.5 mm)
- Sealing Method: Mechanical gasket with compression-based closure system
- Material: UV-resistant, high-impact thermoplastic housing
- Mounting Options: Pole, wall, strand, or underground
- RoHS/REACH compliant
OptiTap® Splice Terminals
Product Overview

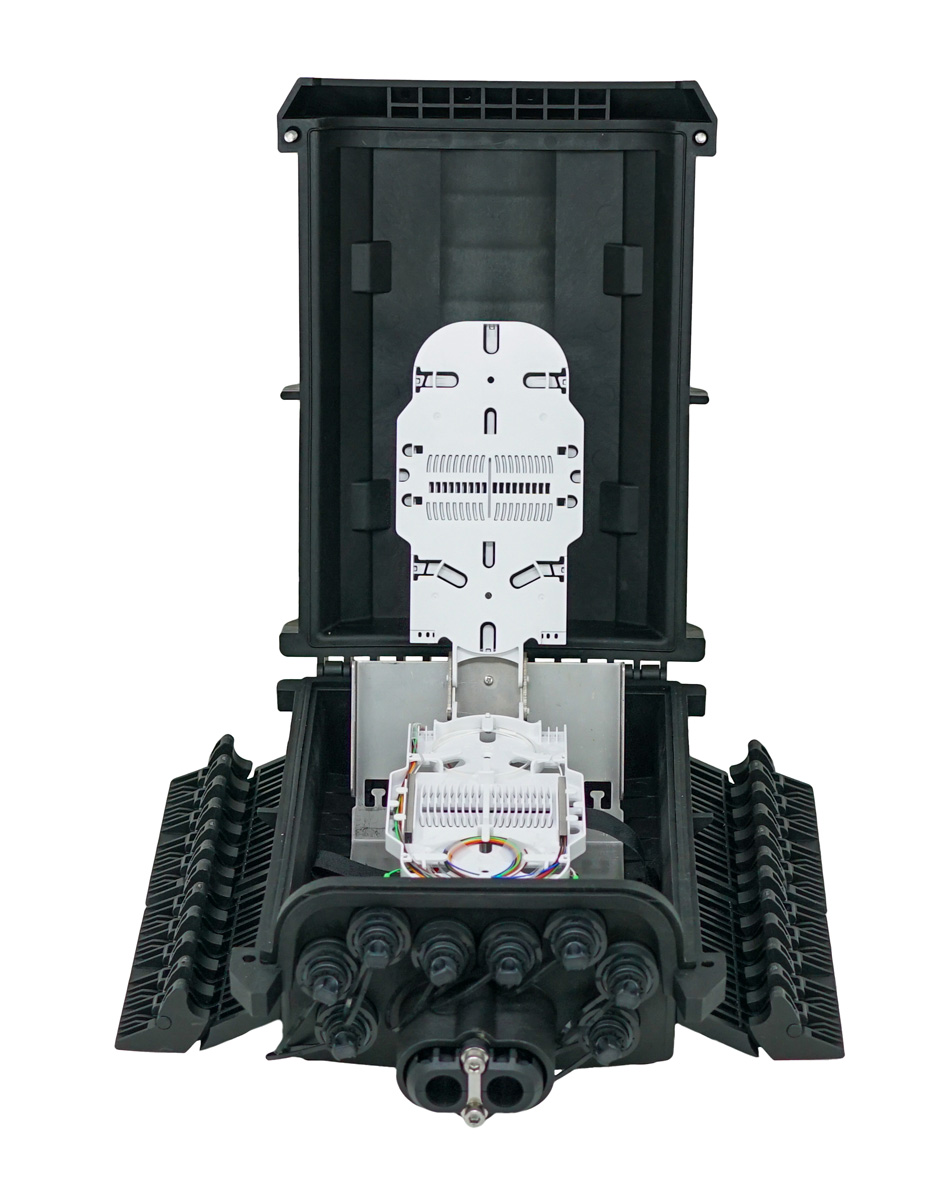

The OptiTap® Splice Terminal (OST) is a hardened enclosure used for fiber splicing and drop connections in broadband networks. The OST supports OptiTap®-compatible hardened drops and includes splice trays for organizing fiber. The terminal is used in aerial, pole, and below-grade locations for distribution points, drop work, and repair activities in new or existing builds.
- Operating Temperature: -40°C to 65°C (-40°F to 149°F)
- Storage Temperature: −20°C to +65°C (−4°F to 149°F)
- Ingress Protection: IP68-rated for dust and water resistance
- UV Protection: Stabilized for extended outdoor exposure
- Supports up to 8 OptiTap®-compatible hardened adapters for fast, tool-less subscriber connections
- Integrated stackable splice trays provide organized fiber management while supporting higher splice counts
- Multiple cable entry points enable versatile cable routing and flexible network configurations
- UV-stabilized, high-impact housing provides durability and long-term protection in outside plant environments
- Stackable, hinged splice trays with integrated fiber routing guides simplify fiber organization, access, and maintenance
- Reusable gasket and clamp closure system provides secure sealing while allowing repeatable access for installation and maintenance
Dimensions
| Length | Width | Height |
| 365 mm (14.37″) | 195 mm (7.68″) | 133 mm (5.24”) |
